Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 80V
Current - Average Rectified (Io) (per Diode) 100mA
Voltage - Forward (Vf) (Max) @ If 1.2V @ 100mA
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 100nA @ 70V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Case / Package SMD3
Win Source Part Number 013786-DAN217T146
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name DAN217
Introduction Date November 30, 1999
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian DAN217T146 CAD Model

Description

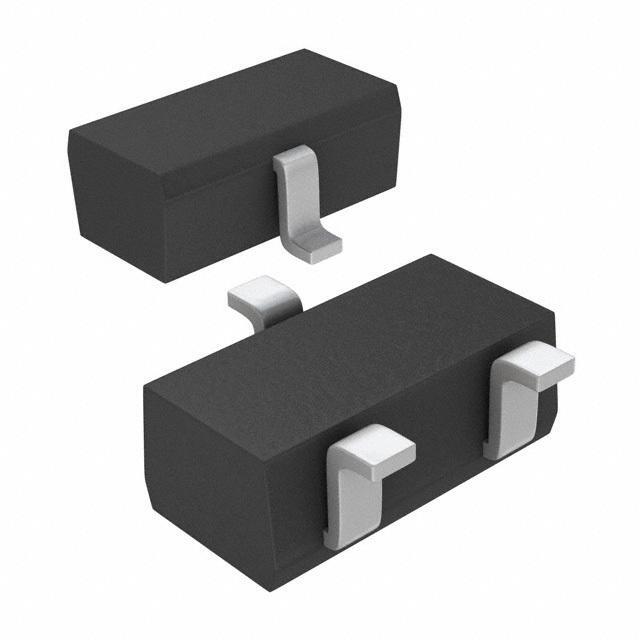

DAN217T146 Diode

The DAN217T146 is a high-performance, dual switching diode designed for high-speed switching applications. Its compact design and robust construction make it ideal for use in a variety of electronic projects.

  • Applications:
    • Signal processing
    • Voltage regulation circuits
    • Amplifier circuits
    • Rectification in power supplies
  • Features and Benefits:
    • High switching speed
    • Low forward voltage drop
    • Compact package size
    • Reliable performance in high-frequency applications
  • Additional Details:
    • High current capability
    • Optimized for automated insertion
    • Durable epoxy construction
