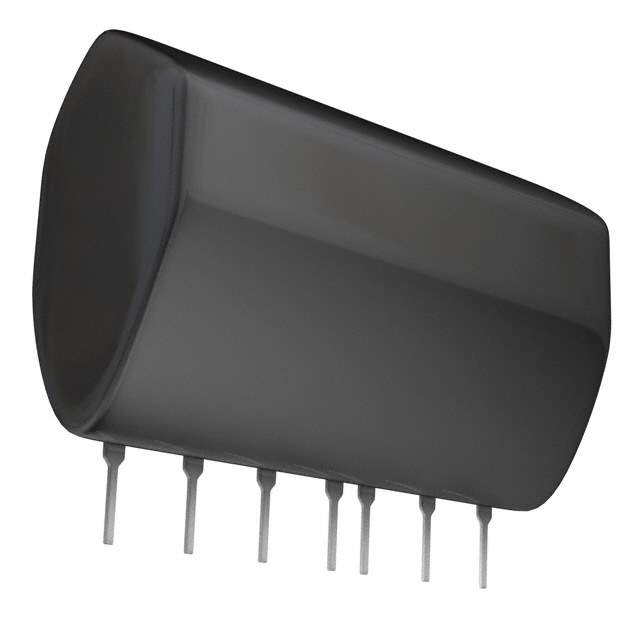

Same model may have multiple batches, images only for reference.

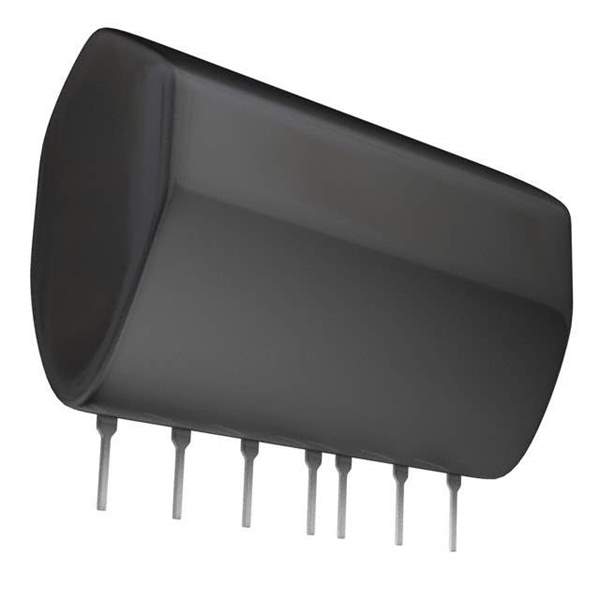

BP5068-15 Real Image
Same model may have multiple batches, images only for reference.

BP5068-15

Part No BP5068-15
Manufacturer Rohm Semiconductor
Catalog END - OF - LIFE
Description AC/DC converter - AC100V input, -15V/800mA output
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Rohm Semiconductor
Series BP5068
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 115 VAC
Voltage - Output 1 -15V
Current - Output (Maximum) 800mA
Power (Watts) 12W
Applications ITE (Commercial)
Operating Temperature Range -20°C ~ 80°C (With Derating)
Efficiency 85%
Mounting Style Through Hole
Package 12-SIP Module, 7 Leads
Size 1.36" L x 0.44" W x 0.85" H (34.5mm x 11.3mm x 21.5mm)
Line Regulation 200mV
Load Regulation 500mV
Win Source Part Number 1153943-BP5068-15
Manufacturer Homepage www.rohm.com
Popularity Medium
Supply and Demand Status Limited
Family Name BP5068
Introduction Date January 25, 2001
Estimated EOL Date Obsolete
Quantity per package 96
Ultra Librarian 3D Model Ultra Librarian BP5068-15 CAD Model

Description

The BP5068-15 is an enclosed power supply module manufactured by Rohm Semiconductor.

  • Power Supply Output: 12W
  • Voltage Input: 85~115 VAC
  • Operating Temperature Range: -20°C to 80°C (with derating)
  • Package: 12-SIP module, 7 leads
  • Applications: ITE (Commercial)
  • Efficiency: 85%
  • Load Regulation: 500mV
  • Series: BP5068
  • Line Regulation: 200mV
  • Current Output: 800mA
  • Supply and Demand Status: Limited
  • Quantity per Package: 96
