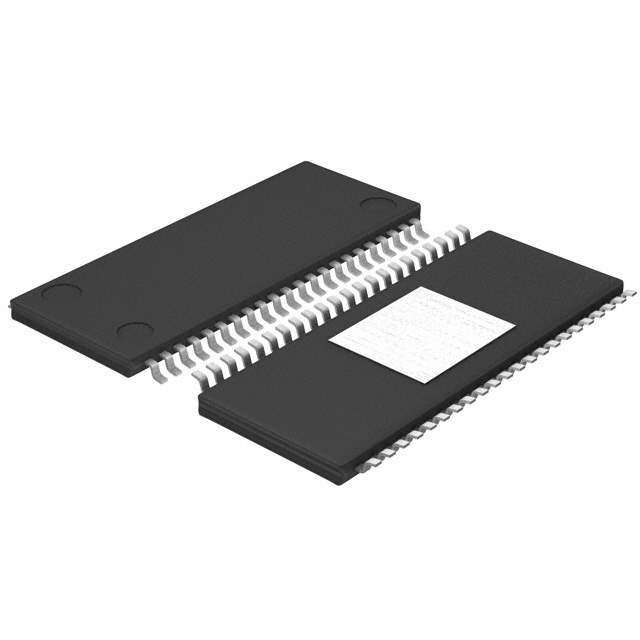

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Rohm Semiconductor
Packaging Reel package
Type Class D
Output Type 2-Channel (Stereo)
Max Output Power x Channels @ Load 17W x 2 @ 4 Ohm
Operating Supply Voltage 10 V ~ 16.5 V
Features Depop, Mute, Short-Circuit and Thermal Protection
Mounting SMD
Operating Temperature Range -40°C ~ 85°C (TA)
Manufacturer Package 44-HTSSOP-A
Package 44-VSOP (0.295", 7.50mm Width)
Win Source Part Number 769901-BD5423EFS-E2
Popularity Medium
Supply and Demand Status Limited
Family Name BD5423EFS
Introduction Date February 27, 2008
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian BD5423EFS-E2 CAD Model

Description

This Class D integrated circuit (IC) is manufactured by Rohm Semiconductor.

  • Win Source Part Number: 769901-BD5423EFS-E2
  • Package: Reel
  • Output Type: 2-channel (stereo)
  • Package: 44-VSOP (0.295", 7.50mm Width)
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -40°C ~ 85°C (TA)
  • Features: Depop, mute, short-circuit and thermal protection
  • Family Name: BD5423EFS
  • Category: Integrated Circuits (ICs)
  • Manufacturer Package: 44-HTSSOP-A
  • Alternative Parts: LV4924VH, LV4920H, TB2924FG(O,EL), LX1721CDBTR
  • Introduction Date: February 27, 2008
  • Supply and Demand Status: Limited
