The EPF10K100EQC240-2 is a Field Programmable Gate Array (FPGA) from the APEX II family, originally manufactured by Altera (now Intel) and currently supplied by Rochester Electronics. This device is a high-density programmable logic device used for implementing custom digital circuits. FPGAs provide a flexible and reconfigurable platform for a wide range of applications, allowing designers to implement complex logic functions without the need for custom ASICs (Application-Specific Integrated Circuits).

Applications

• Telecommunications Equipment: Used in network routers, switches, and base stations for implementing custom communication protocols and data processing algorithms.
• Industrial Control Systems: Employed in programmable logic controllers (PLCs), motor controllers, and machine vision systems.
• Aerospace and Defense Systems: Integrated into radar systems, signal processing units, and embedded controllers requiring high performance and reliability.
• Medical Imaging Equipment: Utilized in MRI machines, CT scanners, and ultrasound devices for image processing and control functions.
• Digital Signal Processing (DSP): Applied in audio processing, video encoding, and other DSP applications requiring parallel processing capabilities.

Features

• 100,000 Logic Elements: Provides a high density of programmable logic resources, enabling the implementation of complex digital circuits.
• Embedded Memory: Includes embedded memory blocks for on-chip data storage, reducing the need for external memory devices.
• Flexible Routing Architecture: Offers a versatile routing architecture that allows for efficient interconnection of logic elements and memory blocks.

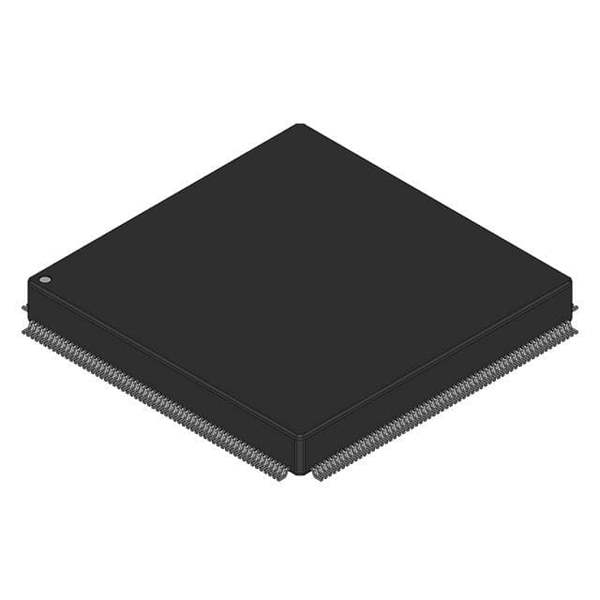

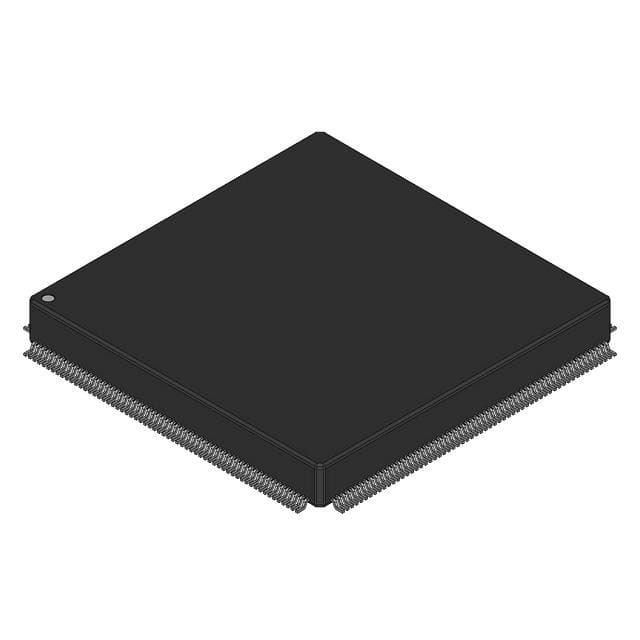

• 240-Pin QFP Package: Available in a 240-pin Quad Flat Package (QFP) for surface-mount assembly on printed circuit boards.
• High-Speed Performance: Designed for high-speed operation, supporting clock frequencies up to 200 MHz or more depending on the application.

Benefits

• Design Flexibility: Allows designers to implement custom logic functions and modify designs quickly without the need for hardware changes.
• Reduced Time-to-Market: Enables rapid prototyping and development, reducing time-to-market for new products.
• Cost-Effective Solution: Provides a cost-effective alternative to custom ASICs for low-to-medium volume production.
• Reconfigurable Hardware: Allows for in-system reconfiguration, enabling the implementation of adaptive and self-reconfiguring systems.
• High Performance: Delivers high-speed performance and parallel processing capabilities for demanding applications.

Additional Details

The EPF10K100EQC240-2 operates at a core voltage of 3.3V. It supports various I/O standards and protocols, including LVTTL, LVCMOS, and PCI. The device is programmed using industry-standard FPGA design tools, such as Quartus Prime from Intel. The operating temperature range typically spans from 0°C to +85°C. The power consumption varies depending on the application and configuration. The FPGA’s architecture consists of logic array blocks (LABs), each containing multiple logic elements (LEs). The device also includes dedicated input/output (I/O) pins for interfacing with external devices. Because Rochester Electronics specializes in continuing support for end-of-life (EOL) components, sourcing this part from them ensures availability even when the original manufacturer has discontinued production. The availability and specific features of the device may vary, so it is essential to consult the Rochester Electronics datasheet for the most accurate and up-to-date information.
