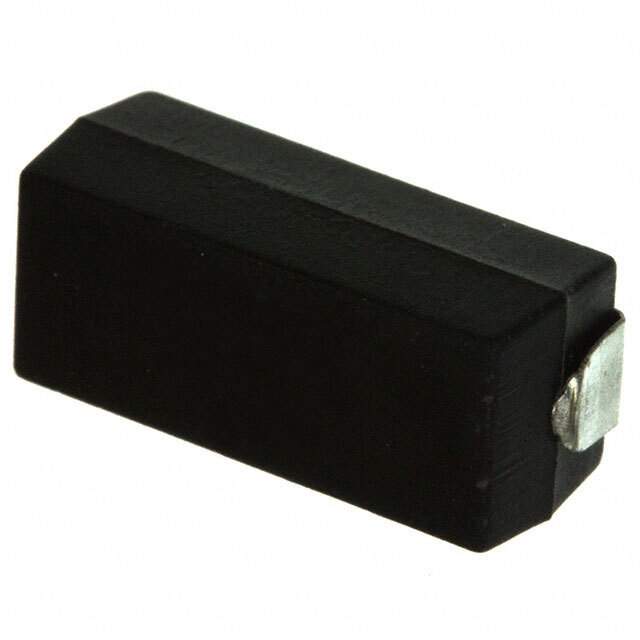

S3-0R5F1 Real Image
Same model may have multiple batches, images only for reference.

S3-0R5F1

Part No S3-0R5F1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES 0.5 OHM 1% 3W 6327 / 500 mOhms ±1% 3W Chip Resistor 6327 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S3-0R5F1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel
Resistance 500 mOhms
Tolerance ±1%
Power (Watts) 3W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Range - Operating -55°C ~ 275°C
Package / Case 6327 J-Lead
Dimension 0.626" L x 0.272" W (15.90mm x 6.90mm)
Height - Seated (Max) 0.268" (6.80mm)
Number of Terminations 2
Other Names 696-1217-2,696-1217-1,S30500OHM1,S-3 0.500 OHM 1%,S-3-0.500FDKR,S-3-0.500FTR,S-3-0.500FDKR,S-3-0.500FCT,S-3-0.500FTR,696-1217-6,S-3-0.500FCT
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237204-S3-0R5F1
Ultra Librarian 3D Model Ultra Librarian S3-0R5F1 CAD Model

Description

The S3-0R5F1 is a chip resistor with a resistance of 500 mOhms.

  • Resistance: 500 mOhms
  • Features: current sense, flame proof, moisture resistance, pulse withstanding, and safety
  • Manufacturer: Riedon
  • Win Source Part Number: 1237204
  • Packaging: Tape and Reel
  • Standard Package: 500
  • Mounting Type: Chip Resistor
