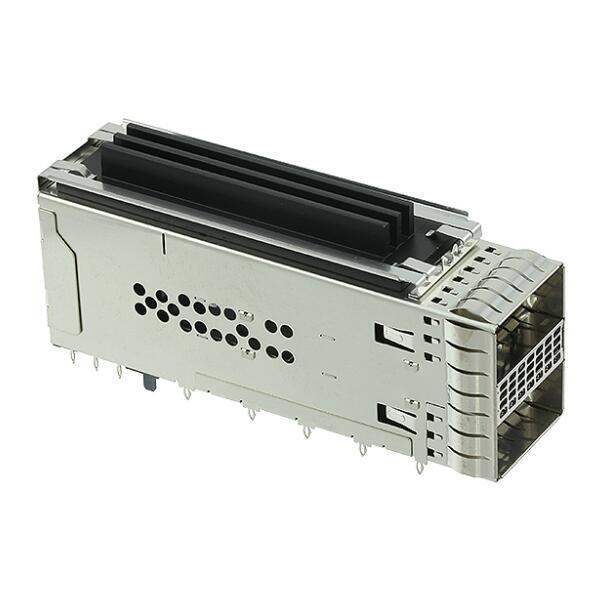

2299940-2TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Pluggable Connectors Pluggable Connector Assemblies
Product Status Active
Connector Style Receptacle with Cage, Ganged (2x1) with Heat Sink
Connector Type ZQSFP+
Number of Positions 76 (38 x 2)
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Features EMI Shielded
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Win Source Part Number WS1207084-2299940-2
Ultra Librarian 3D Model Ultra Librarian 2299940-2 CAD Model
