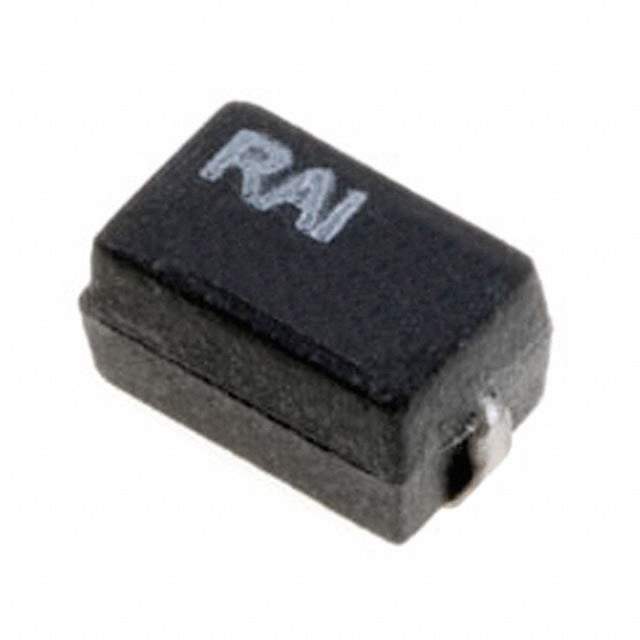

S1-0R47F1 Real Image
Same model may have multiple batches, images only for reference.

S1-0R47F1

Part No S1-0R47F1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES 0.47 OHM 1% 1/2W 1913  /  470 mOhms ±1% 0.5W, 1/2W Chip Resistor 1913 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S1-0R47F1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 470 mOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Range - Operating -55°C ~ 275°C
Package / Case 1913 J-Lead
Dimension 0.189" L x 0.130" W (4.80mm x 3.30mm)
Height - Seated (Max) 0.126" (3.20mm)
Number of Terminations 2
Other Names S1-0R47F1DKR,S-1 0.470 OHM 1%,S-1-0.470FTR,S1-0R47F1CT,S-1-0.470FTR,S10R47F1,S1-0R47F1TR,S-1-0.470FCT,S-1-0.470FDKR,S-1-0.470FCT,S-1-0.470FDKR
Standard Package 650
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237169-S1-0R47F1
Ultra Librarian 3D Model Ultra Librarian S1-0R47F1 CAD Model

Description

The Riedon S1-0R47F1 is a chip resistor used in surface mount applications.

  • Resistance: 470 milliohms
  • Tolerance: ±1%
  • Power Rating: 0.5W (1/2W)
  • Composition: Wirewound
  • ECCN: EAR99
  • MSL level: 1 (unlimited)
  • HTSUS: 8533.21.0080
