Same model may have multiple batches, images only for reference.

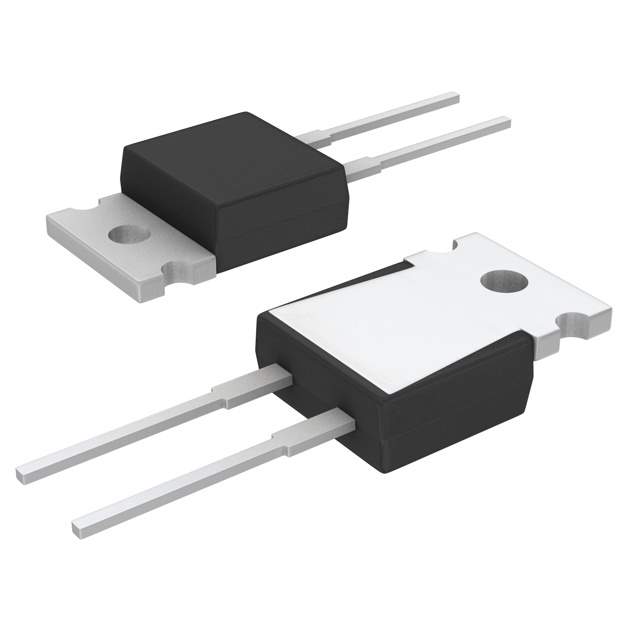

PF2205-1RF1 Real Image
Same model may have multiple batches, images only for reference.

PF2205-1RF1

Part No PF2205-1RF1
Manufacturer Riedon
Catalog Through Hole Resistors
Description RES 1 OHM 1% 50W TO220
Datasheet
PF2205-1RF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 21 Weeks
Features 1 Ohms ±1% 50W Through Hole Resistor TO-220-2 Current Sense, Flame Proof, Pulse Withstanding, Safety Thin Film
Manufacturer Riedon
Series PF2200
Package Tube
Operating Temperature Range -55°C ~ 155°C
Package TO-220-2
Case / Package TO-220
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.29.0000
Other Part Number PF2205-1RF1-ND, 696-1338
Quantity per package 50
Popularity High
Supply and Demand Status Balance
Win Source Part Number 930297-PF2205-1RF1
Ultra Librarian 3D Model Ultra Librarian PF2205-1RF1 CAD Model

Description

The Riedon PF2205-1RF1 is a 50W through-hole resistor with a 1 Ohm resistance and a ±1% tolerance.

  • Power: 50W
  • Mounting Type: Through-Hole
  • Resistance: 1 Ohm
  • Tolerance: ±1%
  • Application: Current Sensing
  • Features: Flame-Proof, Pulse-withstanding, Safety Thin-Film
  • Package: TO-220-2
  • Package Type: Tube
  • Operating Temperature: -55°C to 155°C
  • REACH: Affected
  • Estimated Production Lead Time: 21 weeks
  • Manufacturer: Riedon
