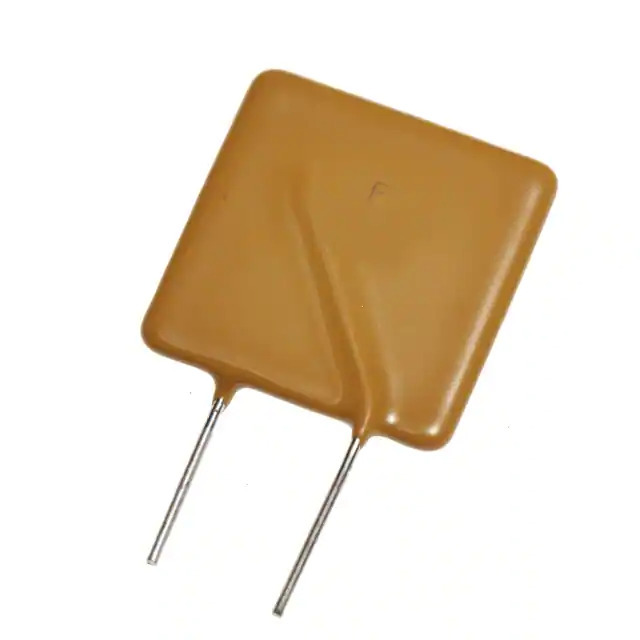

FRV055-240F RFE/Fuzetec
Same model may have multiple batches, images only for reference.

FRV055-240F

Part No FRV055-240F
Manufacturer RFE/Fuzetec
Catalog PTC Resettable Fuses
Description RESETTABLE FUSE - PPTC RADIAL LE / PTC Resettable Fuse 240V (265V Int) 550 mA Ih Through Hole Radial, Disc
Datasheet
FRV055-240F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr RFE/Fuzetec
Series FRV
Package Bulk
Product Status Active
Type -
Voltage - Max 240V (265V Int)
Current - Hold (Ih) (Max) 550 mA
Current - Trip (It) 1.25 A
Current - Max 7 A
Time to Trip 26 s
Resistance - Initial (Ri) (Min) 450 mOhms
Resistance - Post Trip (R1) (Max) 1.45 Ohms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.551" L x 0.161" W (14.00mm x 4.10mm)
Height - Seated (Max) 0.854" (21.70mm)
Thickness (Max) -
Lead Spacing 0.201" (5.10mm)
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361782-FRV055-240F
Ultra Librarian 3D Model Ultra Librarian FRV055-240F CAD Model

Description

The FRV series from RFE/Fuzetec is a radial disc PTC resettable fuse designed for circuit protection.

  • Model: FRV055-240F
  • Maximum Current Rating: 7A
  • Maximum Voltage Rating: 240V (265V internal)
  • Operating Temperature Range: -40°C to 85°C
  • Mounting Type: Through-hole
  • Package: Bulk
  • Time to Trip: 26 seconds
  • Resistance: 450 mOhms
  • Approvals: cUL, TUV, and UL
  • Product Status: Active
  • Offering: Reliable and efficient circuit protection for your electronic devices.
