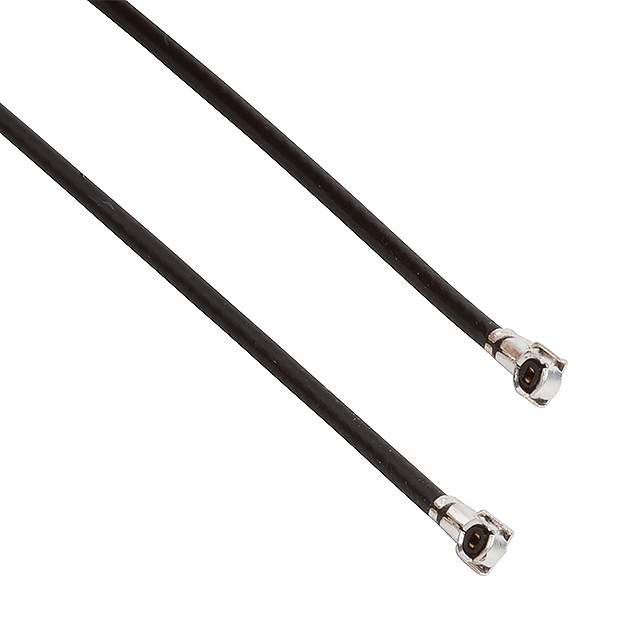

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer Amphenol RF Division
Status Active
Gender Female to Female
Style AMMC to AMMC
1st Connector Ultra Miniature Coaxial Plug Female Socket, Right Angle
2nd Connector Ultra Miniature Coaxial Plug Female Socket, Right Angle
Length 9.843" (250.00mm)
Cable Type 1.13mm OD Coaxial Cable
Impedance 50 Ohm
Maximum Input Frequency 6GHz
Color Black
Features Shielded
Temperature Range - Operating -40°C to 90°C
Win Source Part Number 182738-RF2321
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RF2321 CAD Model

Description

The Amphenol RF Division RF2321 is a medium-popularity electronic component that is manufactured by Amphenol RF Division.

  • Win Source Part Number: 182738
  • Color: Black
  • Type: Shielded cable assembly
  • Length: 9.843 inches (250.00 mm)
  • Impedance: 50 Ohm
  • Style: AMMC to AMMC
  • Connectors: Ultra miniature coaxial plug female socket, right angle connector at both ends
  • Cable Type: 1.13mm OD coaxial cable
  • Maximum Input Frequency: 6GHz
  • Temperature Range: -40°C to 90°C
