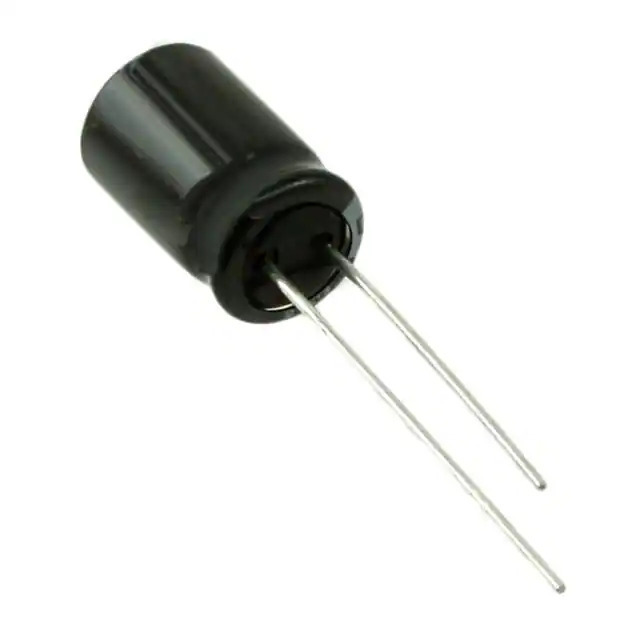

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Tape & Box (TB)
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 270 mA @ 120 Hz
Ripple Current @ High Frequency 324 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357725-16PX330MEFCTA6.3X11
Ultra Librarian 3D Model Ultra Librarian 16PX330MEFCTA6.3X11 CAD Model

Description

The Rubycon 1357725-16PX330MEFCTA6.3X11 is an aluminum electrolytic capacitor with a capacitance of 330 μF and a voltage rating of 16 V.

  • Series: PX
  • Mounting Type: Through-Hole
  • Operating Temperature: -55°C to 105°C
  • Ripple Current (Low Frequency): 270 mA @ 120 Hz
  • Ripple Current (High Frequency): 324 mA @ 10 kHz
  • Lifetime: 1000 hours @ 105°C
  • Lead Spacing: 0.197" (5.00mm)
  • Diameter: 0.248" (6.30mm)
  • Height: 0.492" (12.50mm)
