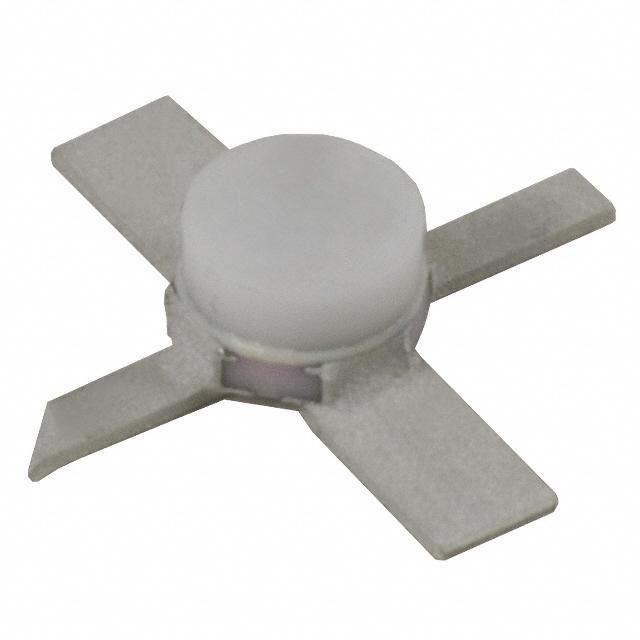

NBB-500 RF Micro Devices
Same model may have multiple batches, images only for reference.

NBB-500

Part No NBB-500
Manufacturer RF Micro Devices
Catalog RF Amplifiers
Description IC AMP MMIC GAAS 4GHZ 4-MICROX
Datasheet
NBB-500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer RF Micro Devices
Packaging Reel - TR
Status Active
Frequency 0Hz to 4GHz
P1dB 12.3dBm (17mW)
Gain 19dB
Noise Figure 3.2dB @ 3GHz
RF Type LMDS, VSAT, WLAN, UNII, DWDM, PTP PMP
Supply Voltage - Operating 3.6 V to 4.2 V
Operating Supply Current 25mA to 45mA
Test Frequency 2GHz
Case / Package 4-Micro-X
Win Source Part Number 059834-NBB-500
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NBB-500 CAD Model

Description

The NBB-500 from RF Micro Devices is a medium popularity electronic component that is in limited supply and demand status.

  • Manufacturer: RF Micro Devices
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Gain: 19dB
  • Noise Figure: 3.2dB @ 3GHz
  • Application: Perfect for use in RF/IF and RFID devices.
