The UPG2163T5N-E2 is a GaAs MMIC SPDT (Single Pole Double Throw) switch designed for various high-frequency applications. Manufactured by Renesas Electronics America, this switch offers excellent performance characteristics, making it suitable for use in wireless communication systems and other RF applications.

Applications

• Wireless LAN (WLAN): Used in IEEE 802.11 a/b/g/n/ac WLAN systems to switch between different antennas or RF paths.
• Bluetooth Devices: Employed in Bluetooth modules for antenna selection and signal routing.
• Mobile Communication: Can be used in cellular devices for band switching and antenna diversity.
• Test and Measurement Equipment: Utilized in RF test equipment for signal routing and switching.
• Satellite Communication Systems: Found in satellite communication equipment for signal distribution.

Features

• High Isolation: Provides typically 30 dB isolation at 2.5 GHz, minimizing signal leakage between ports.
• Low Insertion Loss: Offers a typical insertion loss of 0.4 dB at 2.5 GHz, ensuring minimal signal attenuation.
• Fast Switching Speed: Features a switching speed of 3 µs, enabling rapid signal routing.

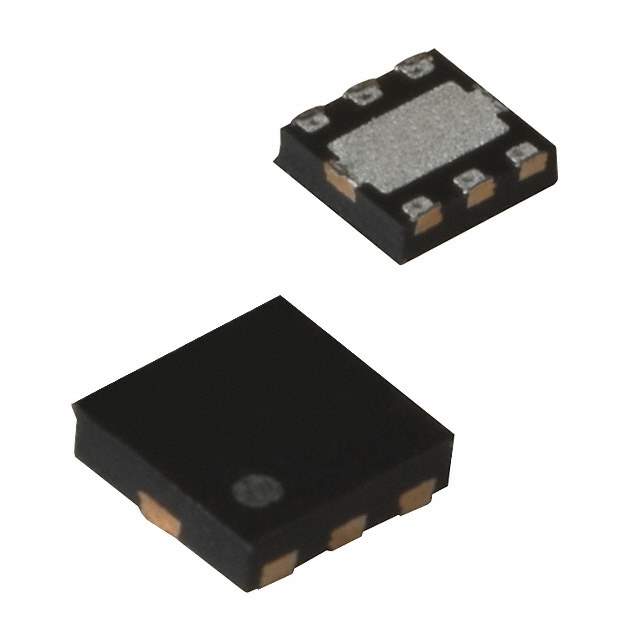

• Small Package: Available in a small 6-pin TSON package (1.5 x 1.5 x 0.55 mm), saving board space.
• Single Positive Control Voltage: Operates with a single positive control voltage, simplifying circuit design.
• Low Power Consumption: Consumes minimal power, making it suitable for battery-powered devices.
• RoHS Compliant: Compliant with RoHS directives, ensuring environmental friendliness.

Benefits

• Improved System Performance: High isolation and low insertion loss contribute to improved signal integrity and overall system performance.
• Reduced Board Space: The small package size allows for compact designs, saving valuable board space.
• Simplified Design: Single positive control voltage simplifies the design process and reduces the number of external components required.
• Lower Power Consumption: Low power consumption extends battery life in portable devices.
• Increased Reliability: Robust design ensures reliable operation in demanding environments.

Additional Details

The UPG2163T5N-E2 operates over a wide frequency range, typically from 50 MHz to 6 GHz. It has an input power handling capability of up to 27 dBm. The switch is controlled by two control pins, which determine the path of the RF signal. The device is designed to be surface-mounted and is compatible with standard soldering techniques.

This SPDT switch is a versatile component that can be used in a variety of RF applications. Its excellent performance characteristics and small size make it an ideal choice for designers looking to optimize their wireless communication systems.
