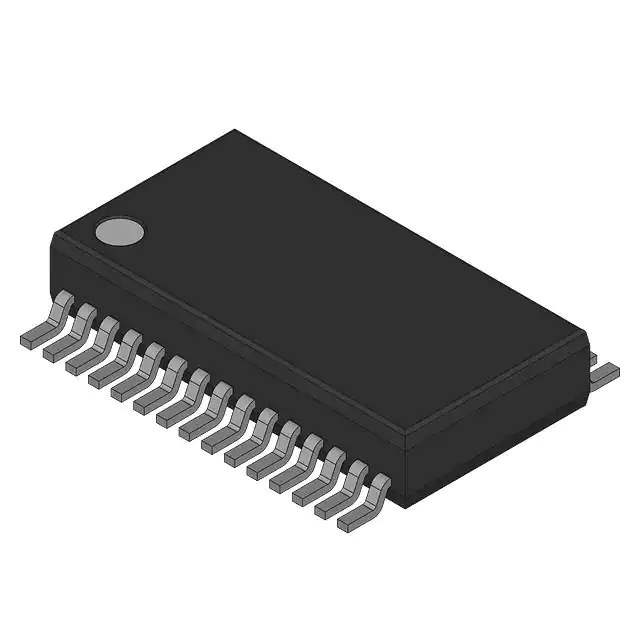

UPD78F0103HMC-5A4-A Real Image
Same model may have multiple batches, images only for reference.

UPD78F0103HMC-5A4-A

Part No UPD78F0103HMC-5A4-A
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 24KB FLASH 30SSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Renesas Electronics America
Package Tray
Product Status Obsolete
Programmable Not Verified
Core Processor 78K/0
Core Size 8-Bit
Speed 12MHz
Connectivity 3-Wire SIO, UART/USART
Peripherals WDT
Number of I/O 22
Program Memory Size 24KB (24K x 8)
Program Memory Type FLASH
RAM Size 768 x 8
Voltage - Supply (Vcc/Vdd) 2.5V ~ 5.5V
Data Converters A/D 4x10b SAR
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 30-LSSOP (0.240", 6.10mm Width)
Supplier Device Package 30-SSOP
Base Product Number UPD78F0103
Standard Package 58 pcs
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 845734-UPD78F0103HMC-5A4-A
Ultra Librarian 3D Model Ultra Librarian UPD78F0103HMC-5A4-A CAD Model

Description

The UPD78F0103HMC-5A4-A is an embedded microcontroller from Renesas Electronics America.

  • Series: UPD78F0103
  • Core Processor: 78K/0
  • Speed: 12MHz
  • Package: Tray
  • Standard Package: 58 pieces
  • Core Size: 8-Bit
  • Connectivity: 3-Wire SIO, UART/USART
  • Peripherals: WDT
  • I/O Pins: 22
  • Program Memory Size: 24KB (24K x 8)
  • Program Memory Type: FLASH
  • RAM Size: 768 x 8
  • A/D Converter: 4x10b SAR
  • Oscillator: Internal
  • Mounting Type: Surface Mountable
  • Package: 30-LSSOP
  • Supplier Device Package: 30-SSOP
  • Operating Temperature: -40°C to 85°C
