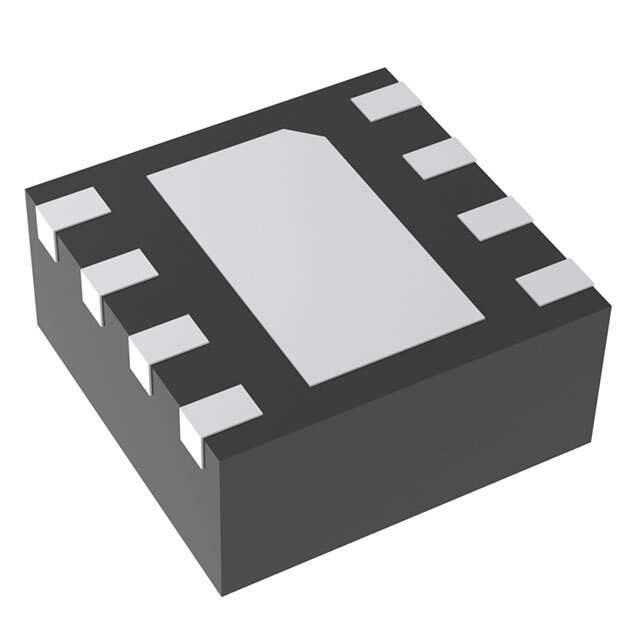

RAA220001GNP#HA0

Name: RAA220001GNP#HA0
Brand: Renesas Electronics America
SKU: 1087605
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RAA220001GNP#HA0
Manufacturer	Renesas Electronics America
Catalog	PMIC - Gate Drivers
Description	BUCK MOSFET DRIVER 8LD DFN 2 X 2 / Half-Bridge Gate Driver IC Non-Inverting 8-DFN (2x2)
Datasheet	RAA220001GNP#HA0 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>PMIC - Gate Drivers
Mfr	Renesas Electronics America Inc
Package	Tape & Reel (TR)
Driven Configuration	Half-Bridge
Channel Type	Synchronous
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	6V ~ 13.2V
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	36 V
Rise / Fall Time (Typ)	31ns, 18ns
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting	SMD (SMT)
Package / Case	8-VFDFN Exposed Pad
Supplier Device Package	8-DFN (2x2)
Base Product Number	RAA220001
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
Other Names	20-RAA220001GNP#HA0TR
Standard Package	6,000
Win Source Part Number	1087605-RAA220001GNP#HA0
Ultra Librarian 3D Model	Ultra Librarian RAA220001GNP#HA0 CAD Model

Alternative Products

Description

The RAA220001GNP#HA0 is an integrated circuit manufactured by Renesas Electronics America.

Type: PMIC - Gate Drivers
Drivers: 2 half-bridge drivers
High-Side Voltage: 36V
Voltage Supply Range: 6V ~ 13.2V
