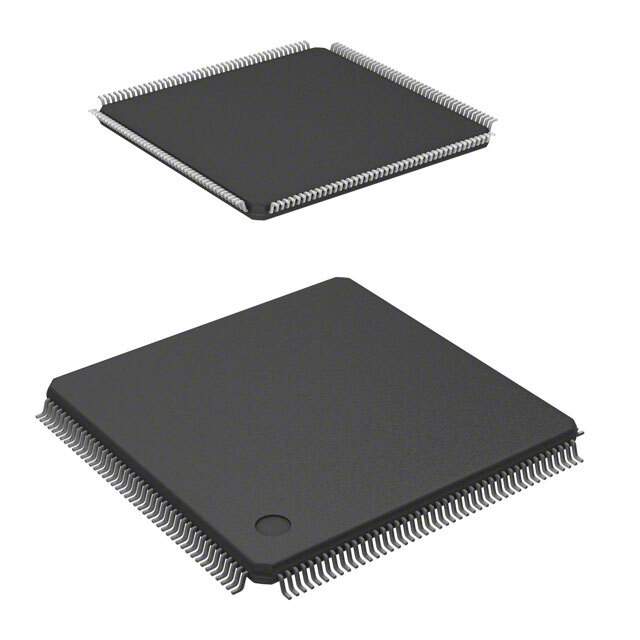

R5F564MLCDFC#31 Real Image
Same model may have multiple batches, images only for reference.

R5F564MLCDFC#31

Part No R5F564MLCDFC#31
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 4MB FLASH 176LFQFP / RXv2 series Microcontroller IC 32-Bit Single-Core 120MHz 4MB (4M x 8) FLASH 176-LFQFP (24x24)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series RX600
Package Tray
Core Processor RXv2
Core Size 32-Bit Single-Core
Speed 120MHz
Connectivity CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART, USB
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 127
Program Memory Size 4MB (4M x 8)
Program Memory Type FLASH
EEPROM Size 64K x 8
RAM Size 552K x 8
Supply Voltage - Operating 2.7V ~ 3.6V
Data Converters A/D 29x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 176-LQFP
Supplier Device Package 176-LFQFP (24x24)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Standard Package 40
Win Source Part Number 1215555-R5F564MLCDFC#31
Ultra Librarian 3D Model Ultra Librarian R5F564MLCDFC#31 CAD Model

Description

The R5F564MLCDFC#31 is an embedded microcontroller from the RX600 series of Renesas Electronics America.

  • Core Processor: RXv2
  • Speed: 120MHz
  • Program Memory Size: 4MB (4M x 8)
  • Program Memory Type: FLASH
  • RAM Size: 552K x 8
  • Data Converters: A/D 29x12b and D/A 2x12b
