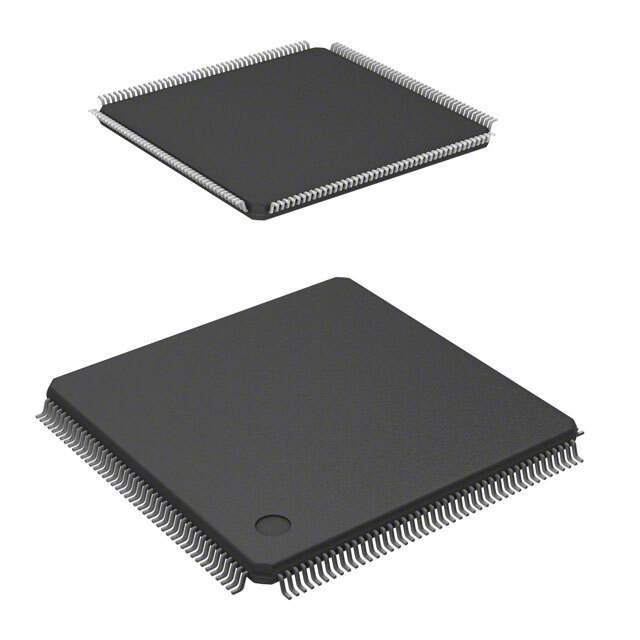

R5F563NBDDFC#V0 Real Image
Same model may have multiple batches, images only for reference.

R5F563NBDDFC#V0

Part No R5F563NBDDFC#V0
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 1MB FLASH 176LFQFP / RX RX600 Microcontroller IC 32-Bit Single-Core 100MHz 1MB (1M x 8) FLASH 176-LFQFP (24x24)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series RX600
Package Tray
Product Status Not For New Designs
Core Processor RX
Core Size 32-Bit Single-Core
Speed 100MHz
Connectivity CANbus, EBI/EMI, Ethernet, I²C, LINbus, SCI, SPI, USB
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 111
Program Memory Size 1MB (1M x 8)
Program Memory Type FLASH
EEPROM Size 32K x 8
RAM Size 128K x 8
Voltage - Supply (Vcc/Vdd) 2.7V ~ 3.6V
Data Converters A/D 8x10b, 21x12b; D/A 2x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 176-LQFP
Supplier Device Package 176-LFQFP (24x24)
Base Product Number R5F563
Standard Package 40
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1340279-R5F563NBDDFC#V0
Ultra Librarian 3D Model Ultra Librarian R5F563NBDDFC#V0 CAD Model

Description

The Renesas Electronics America Inc R5F563NBDDFC#V0 is a microcontroller integrated circuit that belongs to the RX600 series and comes from Renesas Electronics America Inc.

  • Series: RX600
  • Core Processor: 32-Bit Single-Core RX
  • Processor Speed: 100 MHz
  • Package: 176-LQFP
  • Number of I/O: 111
  • Connectivity: CANbus, EBI/EMI, Ethernet, I²C, LINbus, SCI, and SPI
  • Program Memory Size: 1 MB (1M x 8)
  • Program Memory Type: FLASH
  • EEPROM Size: 32K x 8
  • RAM Size: 128K x 8
  • Data Converters: A/D 8x10b, 21x12b, and D/A 2x10b
