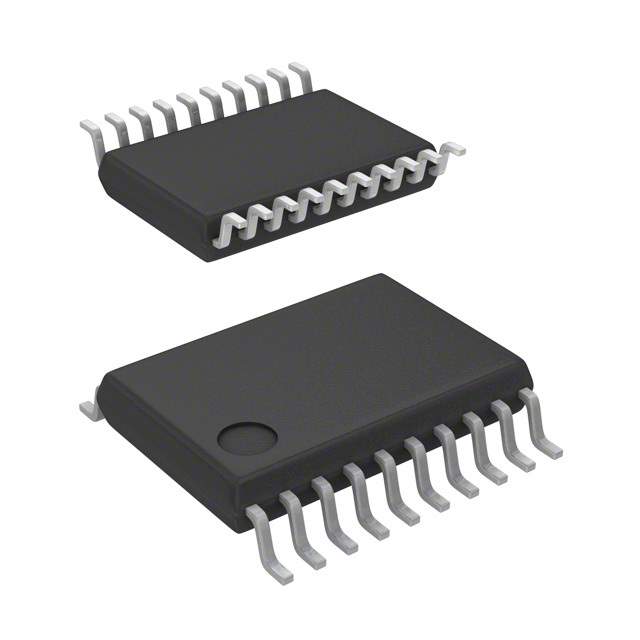

R5F21322DNSP#W4 Real Image
Same model may have multiple batches, images only for reference.

R5F21322DNSP#W4

Part No R5F21322DNSP#W4
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 8KB FLASH 20LSSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features R8C series Microcontroller IC 16-Bit 20MHz 8KB (8K x 8) FLASH 20-LSSOP
Manufacturer Renesas Electronics America
Series R8C/3x/32D
Package Reel - TR
Core Processor R8C
Core Size 16-Bit
Speed 20MHz
Connectivity I2C, LINbus, SIO, SSU, UART/USART
Peripherals POR, PWM, Voltage Detect, WDT
Number of I/O 15
Program Memory Size 8KB (8K x 8)
Program Memory Type FLASH
Supply Voltage 1.8V ~ 5.5V
Data Converters A/D 4x10b
Oscillator Type Internal
Operating Temperature Range -20°C ~ 85°C (TA)
Mounting Surface Mount
Package 20-LSSOP (0.173", 4.40mm Width)
Case / Package 20-LSSOP
Family Name R5F21322
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Quantity per package 2500
Popularity High
Supply and Demand Status Limited
Win Source Part Number 891038-R5F21322DNSP#W4
Ultra Librarian 3D Model Ultra Librarian R5F21322DNSP#W4 CAD Model

Description

The Renesas Electronics America R8C/3x/32D Microcontroller is a 16-bit 20MHz microcontroller with 8KB (8K x 8) FLASH program memory and 15 I/O.

  • Operating Temperature: -20°C to 85°C
  • Program Memory Size: 8KB (8K x 8) FLASH
  • Connectivity: I2C, LINbus, SIO, SSU, and UART/USART
  • Peripherals: POR, PWM, Voltage Detect, and WDT
  • Oscillator Type: Internal
  • Supply Voltage: 1.8V to 5.5V
  • Package Type: 20-LSSOP
  • Package: Reel
  • Series: R8C
