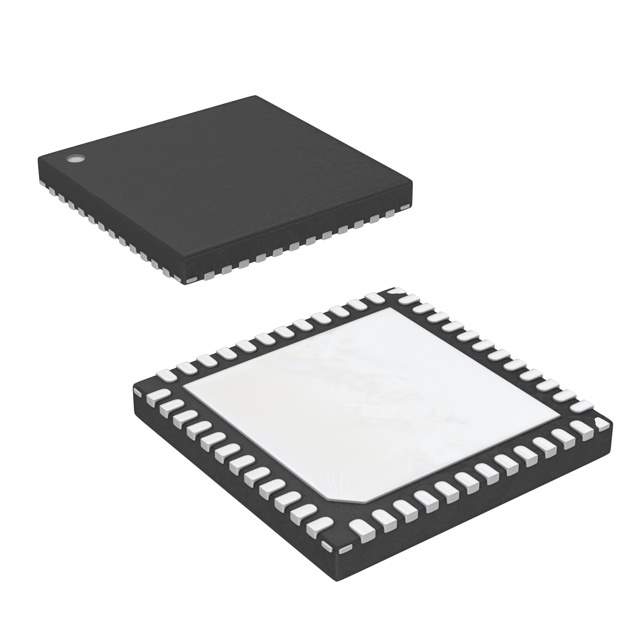

R5F10PGJLNA#W5 Real Image
Same model may have multiple batches, images only for reference.

R5F10PGJLNA#W5

Part No R5F10PGJLNA#W5
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 256KB FLASH 48HVQFN / RL78 series Microcontroller IC 16-Bit 32MHz 256KB (256K x 8) FLASH 48-HVQFN (7x7)
Datasheet
R5F10PGJLNA#W5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series Automotive, AEC-Q100, RL78/F14
Package Tape & Reel (TR)
Core Processor RL78
Core Size 16-Bit
Speed 32MHz
Connectivity CANbus, CSI, I²C, LINbus, SPI, UART/USART
Peripherals LVD, POR, PWM, WDT
Number of I/O 38
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
EEPROM Size 8K x 8
RAM Size 20K x 8
Supply Voltage - Operating 2.7V ~ 5.5V
Data Converters A/D 17x10b SAR; D/A 1x8b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting Type Surface Mount, Wettable Flank
Package / Case 48-VFQFN Exposed Pad
Supplier Device Package 48-HVQFN (7x7)
Base Product Number R5F10
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Other Names 559-R5F10PGJLNA#W5TR
Standard Package 2,500
Win Source Part Number 1186830-R5F10PGJLNA#W5
Ultra Librarian 3D Model Ultra Librarian R5F10PGJLNA#W5 CAD Model

Description

The Renesas Electronics America R5F10PGJLNA#W5 is an integrated circuit (IC) that belongs to the RL78/F14 series.

  • Series: RL78/F14
  • Core Processor: RL78
  • Speed: 32MHz
  • Packaging: tape & reel (TR)
  • Package: 48-VFQFN exposed pad
  • Program Memory Size: 256KB (256K x 8)
  • Program Memory Type: FLASH
  • EEPROM Size: 8K x 8
  • RAM Size: 20K x 8
  • Data Converters: A/D 17x10b SAR and D/A 1x8b
  • Oscillator Type: internal
  • Mounting: surface mount, wettable flank
  • Temperature Range: -40°C to 105°C (TA)
  • Supply Voltage: 2.7V to 5.5V
  • HTSUS: 8542.31.0001
  • Other Names: 559-R5F10PGJLNA#W5TR
  • Manufacturer: Renesas Electronics America Inc.
