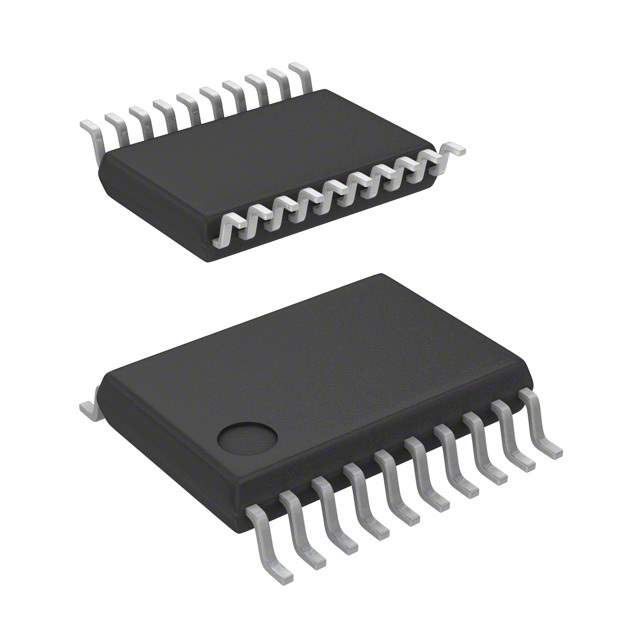

R5F1036AASP#V0 Real Image1 R5F1036AASP#V0 Real Image2
Same model may have multiple batches, images only for reference.
R5F1036AASP#V0 Real Image1 R5F1036AASP#V0 Real Image2
R5F1036AASP#V0 Real Image1 R5F1036AASP#V0 Real Image2
Same model may have multiple batches, images only for reference.

R5F1036AASP#V0

Part No R5F1036AASP#V0
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 16KB FLASH 20LSSOP / RL78 RL78/G12 Microcontroller IC 16-Bit 24MHz 16KB (16K x 8) FLASH 20-LSSOP
Datasheet
R5F1036AASP#V0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>Microcontrollers
Mfr Renesas Electronics America
Series RL78/G12
Package Tray
Product Status Obsolete
Core Processor RL78
Core Size 16-Bit
Speed 24MHz
Connectivity CSI, I²C, UART/USART
Peripherals LVD, POR, PWM, WDT
Number of I/O 14
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 1.5K x 8
Voltage - Supply (Vcc/Vdd) 1.8V ~ 5.5V
Data Converters A/D 11x8/10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 20-LSSOP (0.173", 4.40mm Width)
Supplier Device Package 20-LSSOP
Base Product Number R5F1036
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Standard Package 1 pcs
Win Source Part Number 1383267-R5F1036AASP#V0
Ultra Librarian 3D Model Ultra Librarian R5F1036AASP#V0 CAD Model

Description

The R5F1036AASP#V0 is a microcontroller integrated circuit (IC) from the RL78/G12 series.

  • Manufacturer: Renesas Electronics America
  • Core Processor: 16-Bit
  • Speed: 24MHz
  • Category: Integrated Circuits (ICs) and Embedded
  • Connectivity Options: CSI, I²C, and UART/USART
  • Peripherals: LVD, POR, PWM, and WDT
  • Program Memory Size: 16KB (16K x 8)
  • Program Memory Type: FLASH
  • RAM Size: 1.5K x 8
  • A/D Data Converter: 11x8/10-bit resolution
  • Mounting Type: Surface Mount
  • Package: 20-LSSOP
  • Operating Temperature: -40°C to 85°C (TA)
  • Moisture Sensitivity Level: 3 (168 Hours)
