Same model may have multiple batches, images only for reference.

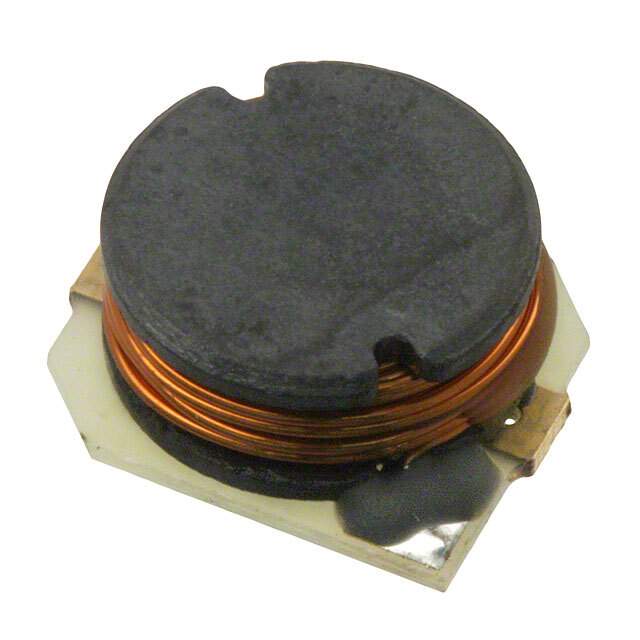

SDR1105-201KL Real Image
Same model may have multiple batches, images only for reference.

SDR1105-201KL

Part No SDR1105-201KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1105-201KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1105
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 200 µH
Tolerance ±10%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 1.8A
Shielding Unshielded
DC Resistance (DCR) 650mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.437" L x 0.394" W (11.10mm x 10.00mm)
Height - Seated (Max) 0.197" (5.00mm)
Base Product Number SDR1105
Other Names SDR1105-201KL,SDR1105-201KLCT,SDR1105-201KLDKR,SDR1105201KL,SDR1105-201KLTR
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274611-SDR1105-201KL
Ultra Librarian 3D Model Ultra Librarian SDR1105-201KL CAD Model

Description

The SDR1105-201KL is a fixed inductor from the SDR1105 series manufactured by Bourns Inc.

  • Type: Drum core, wirewound
  • Shielding: Unshielded
  • Package: Tape and reel
  • Inductance: 200μH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • DC Resistance (DCR): 650mOhm Max
  • Mounting: SMD (SMT)
  • Current Rating: 1A
  • Current Saturation (Isat): 1.8A
  • Temperature Range: -40°C to 125°C
