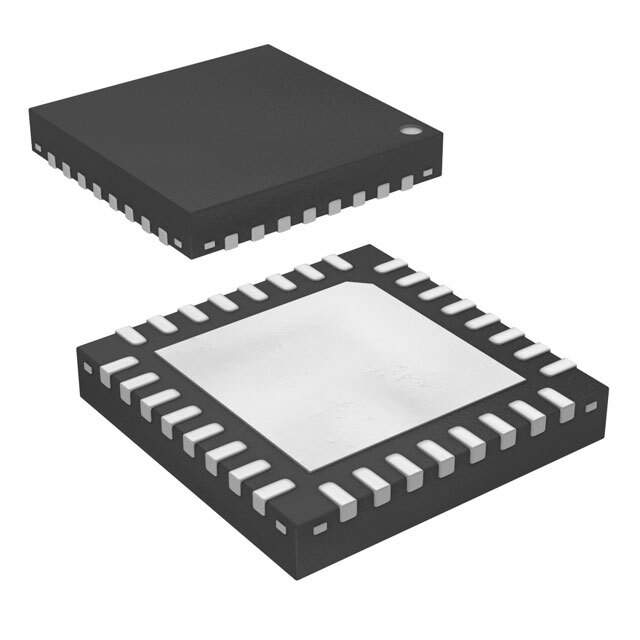

R5F100BADNA#U0 Real Image
Same model may have multiple batches, images only for reference.

R5F100BADNA#U0

Part No R5F100BADNA#U0
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 16KB FLASH 32HWQFN / RL78 series Microcontroller IC 16-Bit 32MHz 16KB (16K x 8) FLASH 32-HWQFN (5x5)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series RL78/G13
Package Tray
Product Status Obsolete
Core Processor RL78
Core Size 16-Bit
Speed 32MHz
Connectivity CSI, I2C, LINbus, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 22
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
RAM Size 2K x 8
Supply Voltage - Operating 1.6V ~ 5.5V
Data Converters A/D 8x8/10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 32-WFQFN Exposed Pad
Supplier Device Package 32-HWQFN (5x5)
Base Product Number R5F100
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Standard Package 490
Win Source Part Number 1213251-R5F100BADNA#U0
Ultra Librarian 3D Model Ultra Librarian R5F100BADNA#U0 CAD Model

Description

The Renesas Electronics America R5F100BADNA#U0 electronic component is an integrated circuit (IC) that belongs to the embedded - microcontrollers category.

  • Series: RL78/G13
  • Core Processor: 16-bit
  • Speed: 32MHz
  • Number of I/O: 22
  • Program Memory Size: 16KB (16K x 8)
  • Program Memory Type: FLASH
  • EEPROM Size: 4K x 8
  • RAM Size: 2K x 8
  • Connectivity: CSI, I2C, LINbus, and UART/USART
  • Package/Case: 32-WFQFN exposed pad
  • Popularity: Medium
  • Supply and Demand: Limited
  • Status: Obsolete
  • Operating Temperature: -40°C to 85°C (TA)
  • Operating Supply Voltage: 1.6V to 5.5V
