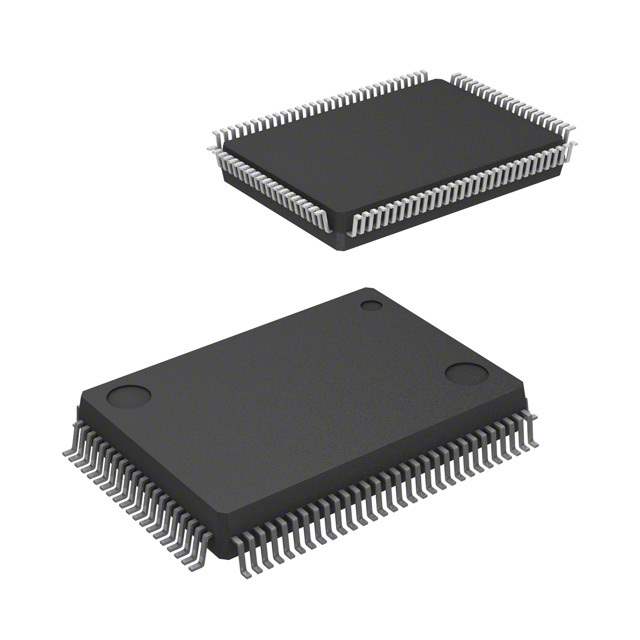

M306N5FCVFP#B1B

Part No M306N5FCVFP#B1B
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description 16-BIT, FLASH, M16C CPU
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Renesas Electronics America
Series M16C™ M16C/60/6N5
Package Bulk
Product Status Active
Programmable Not Verified
Core Processor M16C/60
Core Size 16-Bit
Speed 20MHz
Connectivity CANbus, I2C, IEBus, SIO, UART/USART
Peripherals DMA, WDT
Number of I/O 87
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
RAM Size 5K x 8
Voltage - Supply (Vcc/Vdd) 4.2V ~ 5.5V
Data Converters A/D 26x10b; D/A 2x8b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 100-BQFP
Supplier Device Package 100-QFP (14x20)
Base Product Number M306N
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 924816-M306N5FCVFP#B1B
Ultra Librarian 3D Model Ultra Librarian M306N5FCVFP#B1B CAD Model

Description

The M306N5FCVFP#B1B is an integrated circuit microcontroller from Renesas Electronics America.

  • Series: M16C™ M16C/60/6N5
  • Core Processor: M16C/60
  • Speed: 20MHz
  • Package: Bulk
  • Standard Package: 1 piece
  • Core Size: 16-bit
  • Connectivity: CANbus, I2C, IEBus, SIO, UART/USART
  • Peripherals: DMA and WDT
  • I/O Pins: 87
  • Program Memory: 128KB
  • Memory Type: Flash
  • EEPROM: 4K x 8
  • RAM: 5K x 8
  • Converters: A/D and D/A
  • Oscillator: Internal
  • Operating Temperature: -40°C to 125°C
  • MSL Level: 3 (168 hours)
  • Voltage Supply: 4.2V to 5.5V
  • REACH: Vendor undefined
  • HTSUS: 8542.31.0001
  • Base Product: M306N
  • Status: Active
