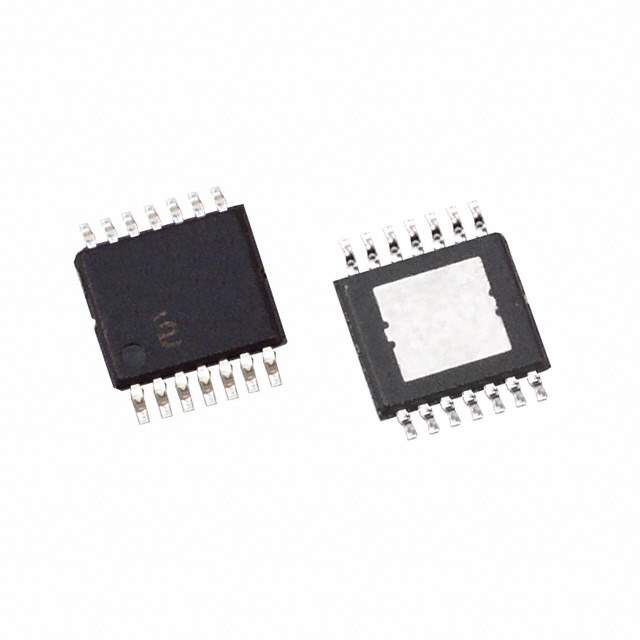

ISL78420AVEZ-T Real Image
Same model may have multiple batches, images only for reference.

ISL78420AVEZ-T

Part No ISL78420AVEZ-T
Manufacturer Renesas Electronics America
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HALF-BRIDG 14HTSSOP
Datasheet
ISL78420AVEZ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 24 Weeks
Features Half-Bridge Gate Driver IC Non-Inverting 14-HTSSOP
Manufacturer Renesas Electronics America
Series Automotive, AEC-Q100
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Case / Package 14-HTSSOP
Family Name ISL78420
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Quantity per package 2500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 921957-ISL78420AVEZ-T
Ultra Librarian 3D Model Ultra Librarian ISL78420AVEZ-T CAD Model

Description

The Renesas ISL78420AVEZ-T is a half-bridge gate driver IC designed for use in automotive applications.

  • Type: Half-Bridge Gate Driver IC
  • Application: Automotive
  • Configuration: Non-Inverting
  • Package: 14-HTSSOP
  • Mounting: Surface Mount
  • Operating Temperature: -40°C to 125°C (TA)
  • Family: ISL78420
  • Category: Integrated Circuits (ICs)
  • Popularity: High
  • Demand and Supply Status: High
  • Estimated Production Lead Time: 24 weeks
  • REACH: Unaffected
  • ECCN: EAR99
