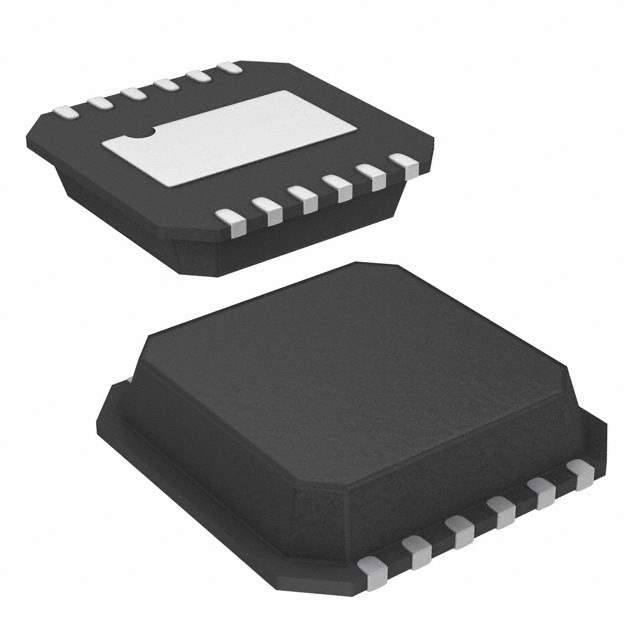

HIP2104FRAANZ

Name: HIP2104FRAANZ
Brand: Renesas Electronics America
SKU: 598041
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HIP2104FRAANZ
Manufacturer	Renesas Electronics America
Catalog	PMIC - Gate Drivers
Description	60V, 1A/2A Peak, 1/2 Bridge Driver with 4V UVLO \| IC DRIVER HALF-BRIDGE 12-DFN
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Renesas Electronics America Inc.
Packaging	Tube
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	N-Channel MOSFET
Supply Voltage (V)	4.5V ~ 14V
Logic Voltage - VIL, VIH	1.63V, 2.06V
Current - Peak Output (Source, Sink)	1A, 1A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	60V
Rise / Fall Time	8ns, 2ns
Temperature Range - Operating	-40°C ~ 125°C
Mounting Style	SMD
Manufacturer Package	12-VFDFN Exposed Pad
Supplier Device Package	12-DFN (4x4)
Manufacturer Pack Quantity	75
MSL Level	3 (168 Hours)
Win Source Part Number	1180729-HIP2104FRAANZ
Manufacturer Homepage	www.intersil.com/cda/home
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian HIP2104FRAANZ CAD Model

Description

The HIP2104FRAANZ is an integrated circuit (IC) from Renesas Electronics America Inc.

Channels: Two independent channels
Input Type: Non-Inverting
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: N-Channel MOSFET
High Side Voltage: 60V (max)
Logic Voltage (VIL, VIH): 1.63V, 2.06V
Current Peak Output: 1A, 1A
Package: 12-DFN (4x4)
Mounting Style: SMD
Temperature Range: -40°C ~ 125°C
Supply Voltage: 4.5V ~ 14V
Rise/Fall Time: 8ns, 2ns
