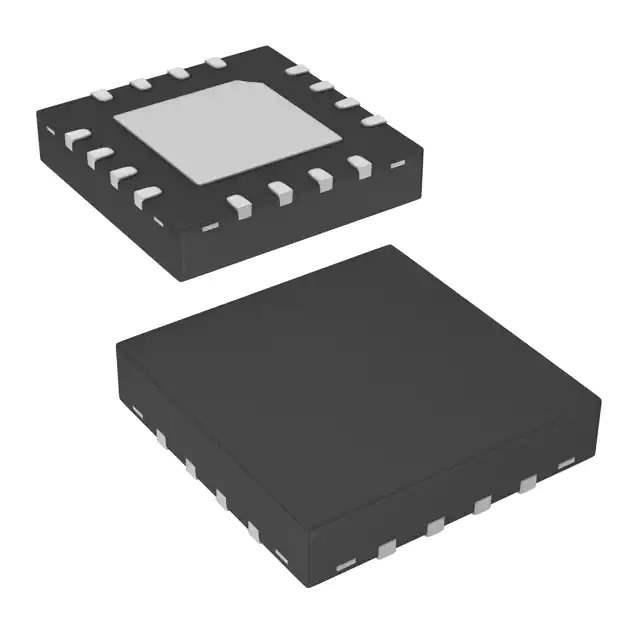

EL5420CL-T7 Real Image
Same model may have multiple batches, images only for reference.

EL5420CL-T7

Part No EL5420CL-T7
Manufacturer Renesas Electronics America
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC VOLTAGE FEEDBACK 4 CIRC 16QFN
Datasheet
EL5420CL-T7 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Mfr Renesas Electronics America
Series EL5420
Package Tape & Reel
Product Status Obsolete
Amplifier Type Voltage Feedback
Number of Circuits 4
Output Type Rail-to-Rail
Slew Rate 10V/µs
Gain Bandwidth Product 8 MHz
-3db Bandwidth 12 MHz
Current - Input Bias 2 nA
Voltage - Input Offset 2 mV
Current - Supply 500µA (x4 Channels)
Current - Output / Channel 30 mA
Voltage - Supply Span (Min) 4.5 V
Voltage - Supply Span (Max) 16.5 V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 16-VQFN Exposed Pad
Supplier Device Package 16-QFN (4x4)
Base Product Number EL5420
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 588692-EL5420CL-T7
Ultra Librarian 3D Model Ultra Librarian EL5420CL-T7 CAD Model

Description

The EL5420CL-T7 is a linear amplifier integrated circuit (IC) used for instrumentation, operational amplifiers, and buffer amplifier applications.

  • Series: EL5420
  • Category: Integrated Circuits (ICs) - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
  • Circuits: 4
  • Output Type: rail-to-rail
  • -3db Bandwidth: 12 MHz
  • Gain Bandwidth Product: 8 MHz
  • Mounting: surface mount
  • Package: 16-VQFN Exposed Pad
  • Manufacturer:Renesas Electronics America
  • Status: obsolete
  • Operating Temperature: -40°C to 125°C
