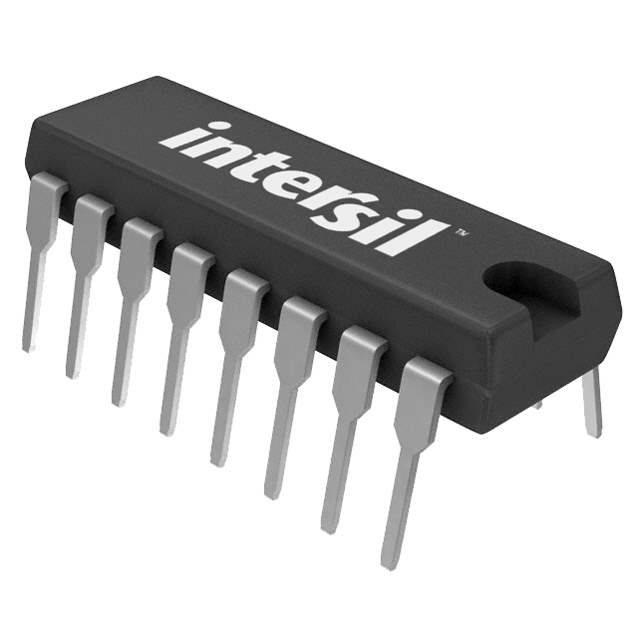

DG508ACJZ Real Image
Same model may have multiple batches, images only for reference.

DG508ACJZ

Part No DG508ACJZ
Manufacturer Renesas Electronics America
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC MUX 8:1 400OHM 16DIP
Datasheet
DG508ACJZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Analog Switches, Multiplexers, Demultiplexers
Mfr Renesas Electronics America
Package Tube
Product Status Obsolete
Number of Circuits 1
On-State Resistance (Max) 400Ohm
Channel-to-Channel Matching (ΔRon) 24Ohm
Voltage - Supply, Dual (V±) ±15V
Switch Time (Ton, Toff) (Max) 1.5µs, 1µs
Charge Injection 4pC
Channel Capacitance (CS(off), CD(off)) 5pF, 25pF
Current - Leakage (IS(off)) (Max) 1nA
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Through Hole
Package / Case 16-DIP (0.300", 7.62mm)
Supplier Device Package 16-PDIP
Base Product Number DG508A
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 584925-DG508ACJZ
Ultra Librarian 3D Model Ultra Librarian DG508ACJZ CAD Model

Description

The DG508ACJZ is a single-channel analog switch designed for various interface applications. Bold the product name (e.g., BAV99S,135 → DG508ACJZ) and manufacturer (e.g., Nexperia USA Inc. → Renesas Electronics America).

  • Channel: Single
  • Mounting Type: Through-hole
  • Package: 16-DIP
  • On-State Resistance: 400Ω
  • Voltage Supply: ±15V
  • Switch Time (ton): 1.5μs
  • Switch Time (toff): 1μs
  • Channel-to-Channel Matching: 24Ω
