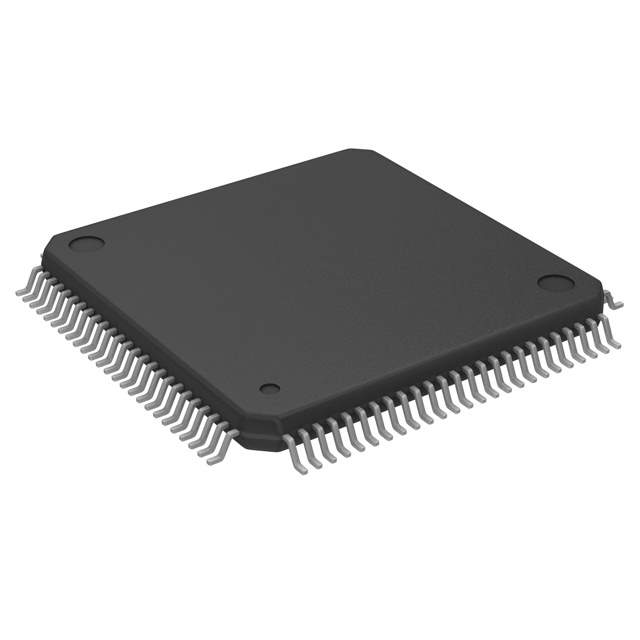

DF2148AFA20V Real Image
Same model may have multiple batches, images only for reference.

DF2148AFA20V

Part No DF2148AFA20V
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 128KB FLASH 100QFP / MCU 16-bit H8S/2000 CISC 128KB Flash 5V 100-Pin PQFP Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Renesas Electronics America
Series H8 H8S/2100
Packaging Tray
Core Processor H8S/2000
Core Size 16-Bit
Speed 20MHz
Connectivity Host Interface, I2C, IrDA, SCI
Peripherals POR, PWM, WDT
Number of I/O 74
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
RAM Size 4K x 8
Supply Voltage 4 V ~ 5.5 V
Data Converters A/D 8x10b; D/A 2x8b
Oscillator Type Internal
Operating Temperature Range -20°C ~ 75°C (TA)
Package 100-BFQFP
Manufacturer Package 100-QFP (14x14)
Win Source Part Number 774318-DF2148AFA20V
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name DF2148
Introduction Date March 25, 2001
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian DF2148AFA20V CAD Model

Description

The DF2148AFA20V is a microcontroller from Renesas Electronics America.

  • Series: H8 H8S/2100
  • Package: 100-BFQFP
  • Core Processor: H8S/2000
  • Speed: 20MHz
  • Core Size: 16-bit
  • Connectivity: host interface, I2C, IrDA, and SCI
  • Peripherals: POR, PWM, and WDT
  • Program Memory Size: 128KB (128K x 8)
  • Program Memory Type: FLASH
  • RAM Size: 4K x 8
  • Data Converters: A/D 8x10b and D/A 2x8b
  • Oscillator Type: internal
  • Supply Voltage: 4 V ~ 5.5 V
  • Family: DF2148
  • Category: integrated circuits (ICs)
  • Popularity: Medium
  • Supply and Demand Status: Limited
