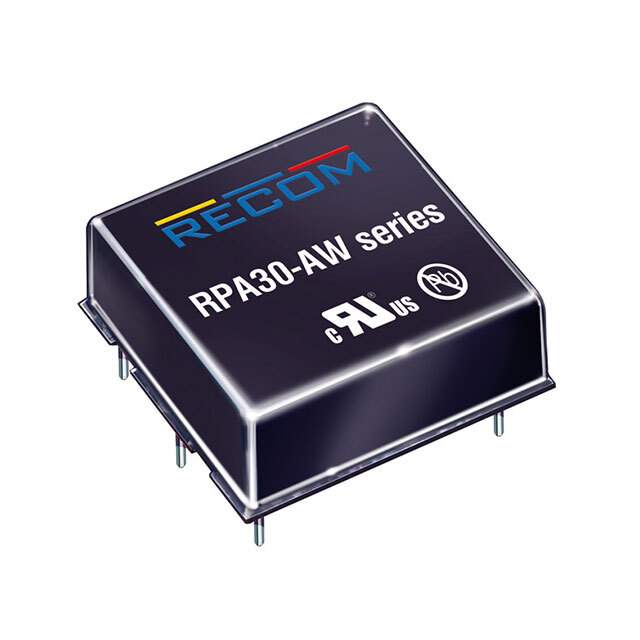

Same model may have multiple batches, images only for reference.

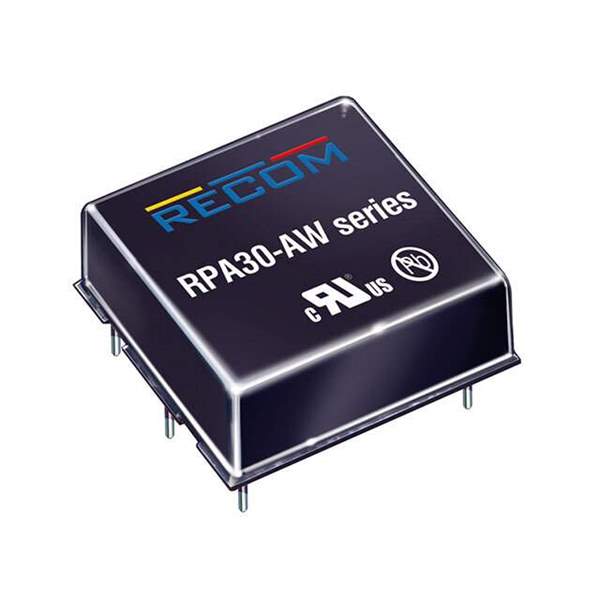

RPA30-2405SAW/P Real Image
Same model may have multiple batches, images only for reference.

RPA30-2405SAW/P

Part No RPA30-2405SAW/P
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 30W / Isolated Module DC DC Converter 1 Output 5V 6A 9V - 36V Input
Datasheet
RPA30-2405SAW/P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Recom Power
Series POWERLINE RPA30-AW (30W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 6A
Power (Watts) 30 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial) , Railway
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 89%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Control Features Enable, Active High
Base Product Number RPA30-2405
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1336812-RPA30-2405SAW/P
Ultra Librarian 3D Model Ultra Librarian RPA30-2405SAW/P CAD Model

Description

The POWERLINE RPA30-AW (30W) isolated module is a DC-DC converter with a voltage input range of 9V to 36V and a voltage output of 5V. It features remote on/off, overcurrent protection, overtemperature protection, overvoltage protection, short circuit protection, and under voltage lockout. The module has a power rating of 30W and an efficiency of 89%. The package is a 6-DIP module and is suitable for through-hole mounting. The module is ideal for commercial and railway ITE applications.
