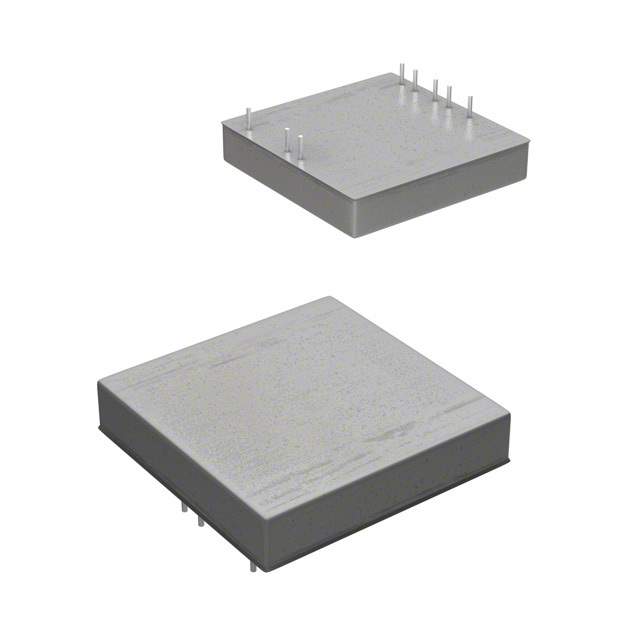

Same model may have multiple batches, images only for reference.

RP40-2412DGW/N-HC

Get a Quote

Part No	RP40-2412DGW/N-HC
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 40W / Isolated Module DC DC Converter 2 Output 12V -12V 1.67A, 1.67A 9V - 36V Input
Datasheet	RP40-2412DGW/N-HC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	POWERLINE RP40-GW (40W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	1.67A, 1.67A
Power (Watts)	40 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 55°C
Efficiency	86%
Mounting Type	Through Hole
Package / Case	8-DIP Module
Dimension	2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm)
Control Features	Enable, Active Low
Base Product Number	RP40-2412
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	30002093,RP402412DGW/NHC
Standard Package	12
Win Source Part Number	1033599-RP40-2412DGW/N-HC
Ultra Librarian 3D Model	Ultra Librarian RP40-2412DGW/N-HC CAD Model

Alternative Products

Description

The RP40-2412DGW/N-HC is an isolated module type DC-DC converter with a POWERLINE RP40-GW (40W) series from Recom Power.

Type: DC-DC Converter, Isolated Module
Series: POWERLINE RP40-GW (40W)
Mounting Type: Through Hole
Package/Case: 8-DIP Module
Number of Outputs: 2
Output Current: 1.67A and 1.67A
Input Voltage Range: 9V to 36V
Voltage Isolation: 1.6 kV
Temperature Range: -40°C ~ 55°C
Market Status: Open market
Alternative Parts: REC5-2415DRWZ/H2/A, REC3-2415DRWZ/H2/A, REC5-2412DRWZ/H2/A, NCS12D1215C, and PXB15-24WD05/N
