Same model may have multiple batches, images only for reference.

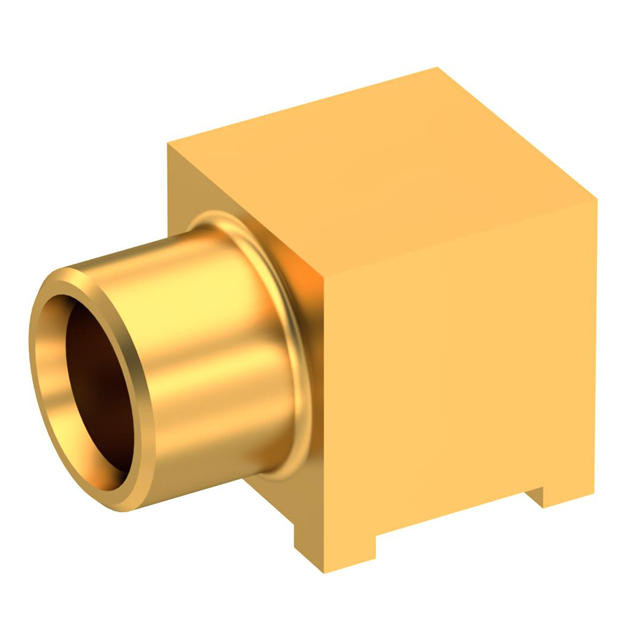

R213664800 Real Image
Same model may have multiple batches, images only for reference.

R213664800

Part No R213664800
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF) - Assemblies
Description MCX / RIGHT ANGLE JACK RECEPTACL / MCX Connector Receptacle, Female Socket 75Ohm Surface Mount, Right Angle Solder
Datasheet
R213664800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Radiall USA, Inc.
Package Tape & Reel
Connector Style MCX
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 75Ohm
Mounting Type Surface Mount, Right Angle
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -55°C ~ 155°C
Voltage Rating 335 V
Mating Cycles 500
Base Product Number R21366
Standard Package 100
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1337363-R213664800
Ultra Librarian 3D Model Ultra Librarian R213664800 CAD Model

Description

This connector type is a receptacle, female socket and has a fastening type of snap-on.

  • Connector Style: MCX
  • Voltage Rating: 335V
  • Housing Color: Gold
  • Number of Ports: One
  • Connector Material: Brass
  • Shield Termination: Solder
  • Package: Tape and reel
  • Standard Package: 100
  • Impedance: 75Ohm
  • Mating Cycles: 500
  • Mounting Type: Surface mount, right angle
