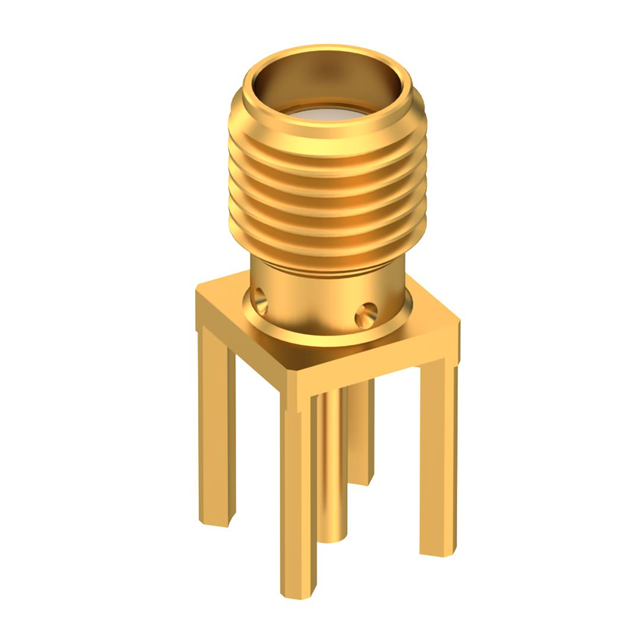

R125426000 Real Image
Same model may have multiple batches, images only for reference.

R125426000

Part No R125426000
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF)
Description SMA F STR PCB C100 / SMA Connector Jack, Female Socket 50Ohm Through Hole Solder
Datasheet
R125426000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Radiall USA, Inc.
Package Bulk
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole
Fastening Type Threaded
Frequency - Max 18 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Stainless Steel
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names R125.426.000,2201-R125426000
Standard Package 100
Win Source Part Number 1211879-R125426000
Ultra Librarian 3D Model Ultra Librarian R125426000 CAD Model

Description

The Radiall USA R125426000 is an SMA female socket connector that is designed for use in RF applications.

  • Connector Type: SMA Female Socket
  • Fastening Type: Threaded
  • Package: Bulk
  • Impedance: 50Ohm
  • Frequency: Up to 18 GHz
  • Housing Color: Gold
  • Body Material: Stainless Steel
  • Body Finish: Gold
  • Center Contact Plating: Gold
  • MSL Level: 1
  • ECCN: EAR99
