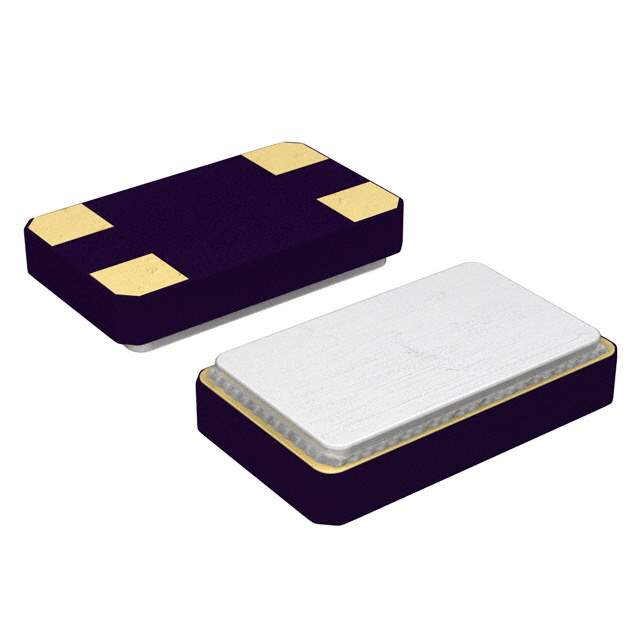

ABMM2-25.000MHZ-E2-T Real Image
Same model may have multiple batches, images only for reference.

ABMM2-25.000MHZ-E2-T

Part No ABMM2-25.000MHZ-E2-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 25.0000MHZ 18PF SMD / 25 MHz ±20ppm Crystal 18pF 50 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABMM2
Package Tape & Reel
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.240" L x 0.142" W (6.00mm x 3.60mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 535-9640-1,535-9640-2,535-9640-6,ABMM225000MHZE2T
Standard Package 1,000
Win Source Part Number 1226167-ABMM2-25.000MHZ-E2-T
Ultra Librarian 3D Model Ultra Librarian ABMM2-25.000MHZ-E2-T CAD Model

Description

The ABMM2-25.000MHZ-E2-T is a 25 MHz crystal oscillator with a frequency stability of ±20ppm and a frequency tolerance of ±20ppm.

  • Frequency: 25 MHz
  • Frequency Stability: ±20ppm
  • Frequency Tolerance: ±20ppm
  • ESR: 50 Ohms
  • Load Capacitance: 18pF
  • Mode: fundamental
  • Package: 4-SMD, no lead
  • Height: 0.047" (1.20mm)
  • Dimension: 0.240" L x 0.142" W (6.00mm x 3.60mm)
