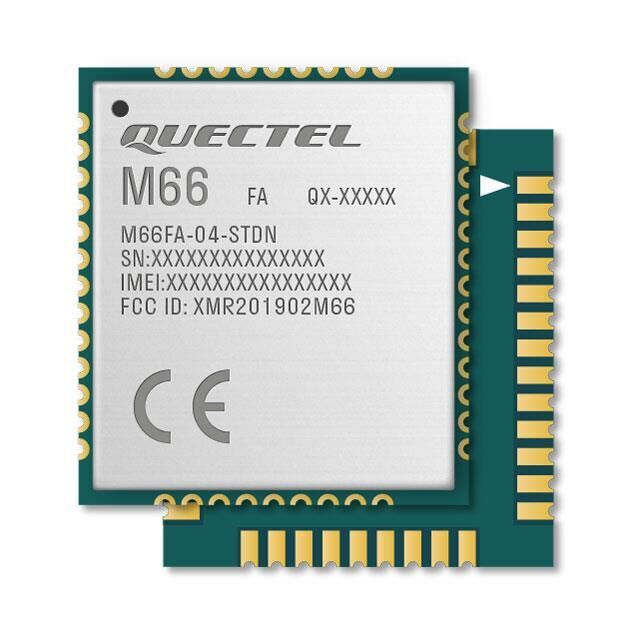

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and WirelessRF Transceiver Modules and Modems
Mfr Quectel
Series M66
Packaging Tape & Reel (TR)
Part Status Not For New Designs
RF Family/Standard Bluetooth, Cellular
Protocol Bluetooth v3.0, GSM, GPRS
Frequency 850MHz, 900MHz, 1.8GHz, 1.9GHz
Data Rate 85.6kbps
Power - Output 2W
Sensitivity -109dBm
Serial Interfaces UART
Antenna Type Antenna Not Included
Utilized IC / Part MT6261D
Voltage - Supply 3.3V ~ 4.6V
Current - Receiving 1.2mA ~ 1.3mA
Mounting Type Surface Mount
Operating Temperature -40°C ~ 85°C
Package / Case Module
Ultra Librarian 3D Model Ultra Librarian M66FB-04-STD CAD Model
