Same model may have multiple batches, images only for reference.

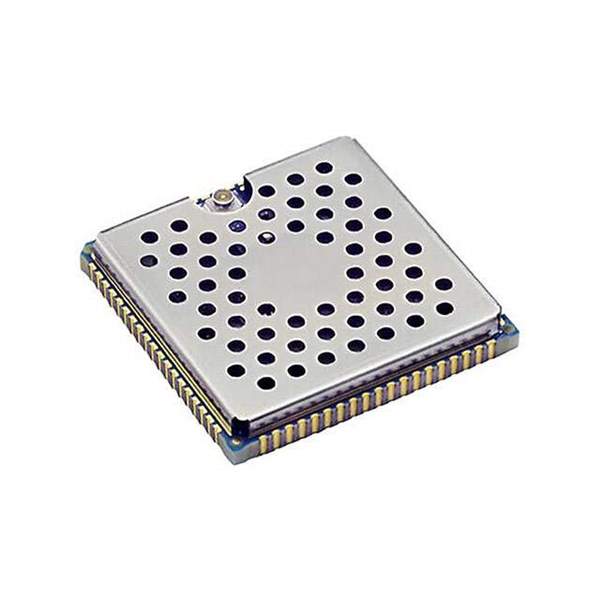

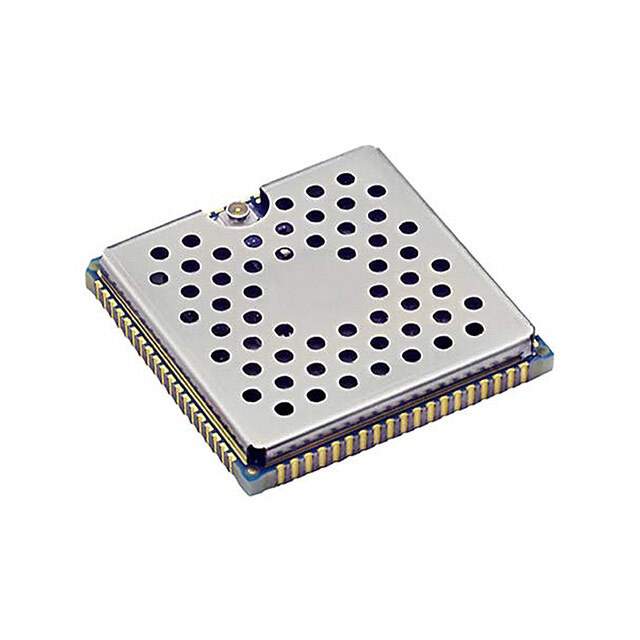

CC-MX-JN7A-Z1 Real Image
Same model may have multiple batches, images only for reference.

CC-MX-JN7A-Z1

Part No CC-MX-JN7A-Z1
Manufacturer Digi International
Catalog RF Transceiver Modules
Description RF TXRX MODULE ISM < 1GHZ SMD / General ISM < 1GHz Transceiver Module 528MHz Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Digi
Series ConnectCore® 6UL
Package Tray
RF Family/Standard General ISM < 1GHz
Frequency 528MHz
Serial Interfaces Ethernet
Memory Size 1GB Flash, 1GB DRAM
Voltage - Supply 5V
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
Base Product Number CC-MX-JN7
Standard Package 40
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
California Prop 65 Warning Information
Win Source Part Number 1340048-CC-MX-JN7A-Z1
Ultra Librarian 3D Model Ultra Librarian CC-MX-JN7A-Z1 CAD Model

Description

The ConnectCore 6UL RF transceiver module and modem from Digi is a high-performance device that operates @ a frequency of 528MHz.

  • Frequency: 528MHz
  • Package / Case: Module
  • Memory Size: 1GB Flash, 1GB DRAM
  • Voltage - Supply: 5V
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 85°C
  • REACH: Unaffected
