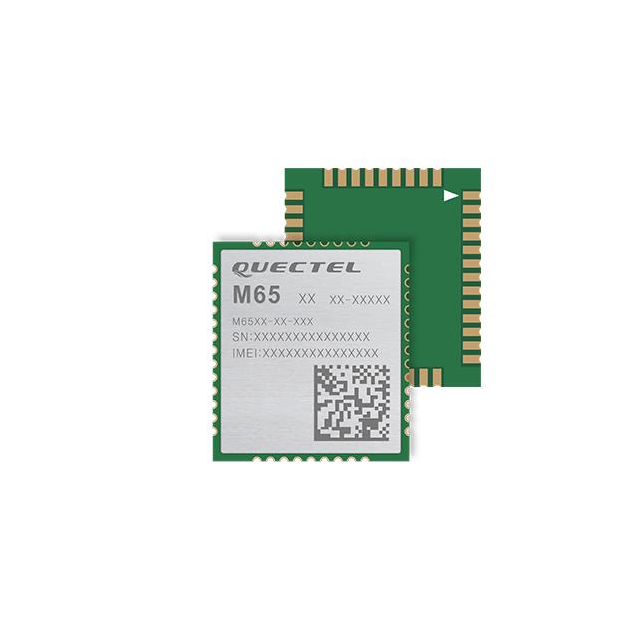

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Quectel
Package Tape & Reel
RF Family/Standard Cellular
Protocol GSM, GPRS
Frequency 850MHz, 900MHz, 1.8GHz, 1.9GHz
Data Rate 85.6kbps
Sensitivity -108dBm
Serial Interfaces UART
Antenna Type Antenna Not Included
Voltage - Supply 3.45V ~ 4.25V
Current - Receiving 1.2mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 44-SMD Module
Base Product Number M65
Standard Package 250
MSL Level 3 (168 Hours)
ECCN 5A991B1
HTSUS 8517.62.0090
Win Source Part Number 1342143-M65MA-04-STD
Ultra Librarian 3D Model Ultra Librarian M65MA-04-STD CAD Model

Description

The Quectel M65MA-04-STD is an RF transceiver module that operates @ frequencies of 850MHz, 900MHz, 1.8GHz, and 1.9GHz.

  • Protocol: GSM, GPRS
  • Data Rate: 85.6kbps
  • Antenna Type: Not Included
  • Sensitivity: -108dBm
  • Current - Receiving: 1.2mA
  • Voltage - Supply: 3.45V ~ 4.25V
  • Package / Case: 44-SMD Module
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 85°C
