Same model may have multiple batches, images only for reference.

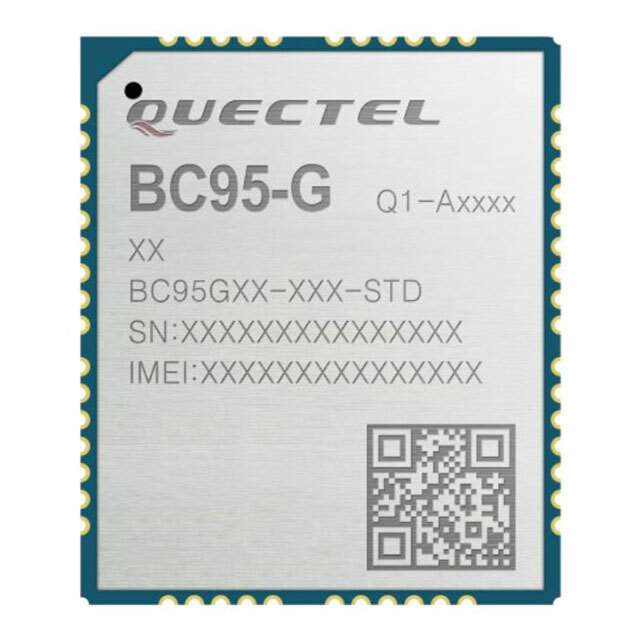

BC95GVBA-I01-CNASA Real Image
Same model may have multiple batches, images only for reference.

BC95GVBA-I01-CNASA

Part No BC95GVBA-I01-CNASA
Manufacturer Quectel
Catalog RF Transceiver Modules
Description RF TXRX BT MOD CELLULAR SMD / Cellular GPRS, GSM, LTE Transceiver Module 700MHz, 800MHz, 850MHz, 900MHz, 1.8GHz, 2.1GHz Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Quectel
Package Tape & Reel
RF Family/Standard Cellular
Protocol GPRS, GSM, LTE
Frequency 700MHz, 800MHz, 850MHz, 900MHz, 1.8GHz, 2.1GHz
Data Rate 150kbps
Power - Output 23dBm
Sensitivity -129dBm
Serial Interfaces ADC, UART
Voltage - Supply 3.1V ~ 4.2V
Current - Receiving 60mA
Current - Transmitting 70mA ~ 280mA
Mounting Type Surface Mount
Temperature Range - Operating -35°C ~ 75°C
Package / Case Module
Base Product Number BC95
Standard Package 250
MSL Level 3 (168 Hours)
Win Source Part Number 1337734-BC95GVBA-I01-CNASA
Ultra Librarian 3D Model Ultra Librarian BC95GVBA-I01-CNASA CAD Model

Description

The BC95GVBA-I01-CNASA from Quectel is a RF Transceiver Module. The manufacturer is Quectel, and the product is BC95GVBA-I01-CNASA.

  • Frequencies: 700MHz, 800MHz, 850MHz, 900MHz, 1.8GHz, and 2.1GHz
  • Protocols: GPRS, GSM, and LTE
  • Data Rate: 150kbps
  • Power Output: 23dBm
  • Sensitivity: -129dBm
  • Mounting: Surface Mountable
  • Package: Tape and Reel
  • Standard Package: 250 pieces
  • Current Receiving: 60mA
  • Transmitting Current: 70mA to 280mA
  • Voltage Supply: 3.1V to 4.2V
  • RF Family/Standard: Cellular
  • Serial Interfaces: ADC and UART
  • Ideal For: RF and Wireless applications
