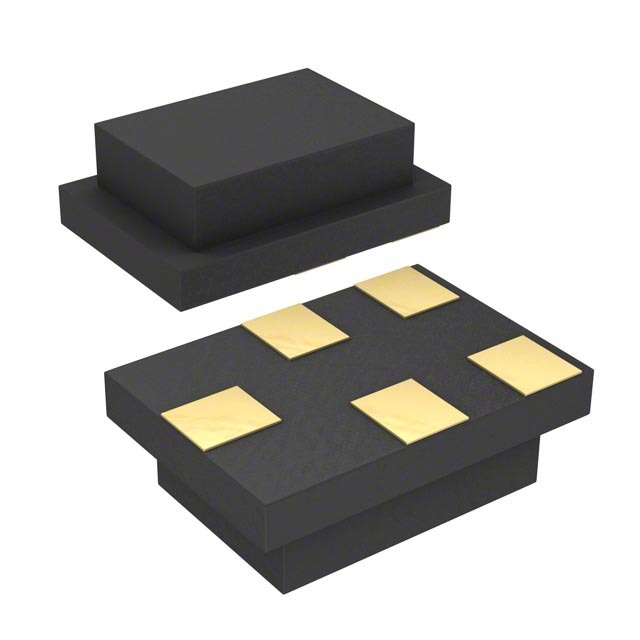

Same model may have multiple batches, images only for reference.

B39242B7520P810

Name: B39242B7520P810
Brand: Qualcomm
SKU: 1482548
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B39242B7520P810
Manufacturer	Qualcomm
Catalog	SAW Filters
Description	2.442GHz Frequency Bluetooth, WLAN RF SAW Filter (Surface Acoustic Wave) 1.4dB 77.8MHz Bandwidth 5-SMD, No Lead
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Qualcomm (RF front-end (RFFE) filters)
Series	B7520
Packaging	Reel - TR
Frequency - Center	2.442GHz
Bandwidth	77.8MHz
Insertion Loss	1.4dB
Applications	Bluetooth, WLAN
Mounting Type	Surface Mount
Package / Case	5-SMD, No Lead
Height (Max)	0.018" (0.45mm)
Size / Dimension	0.043" L x 0.035" W (1.10mm x 0.90mm)
RoHS Status	ROHS3 Compliant
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8541.60.0080
Win Source Part Number	1482548-B39242B7520P810
Ultra Librarian 3D Model	Ultra Librarian B39242B7520P810 CAD Model
