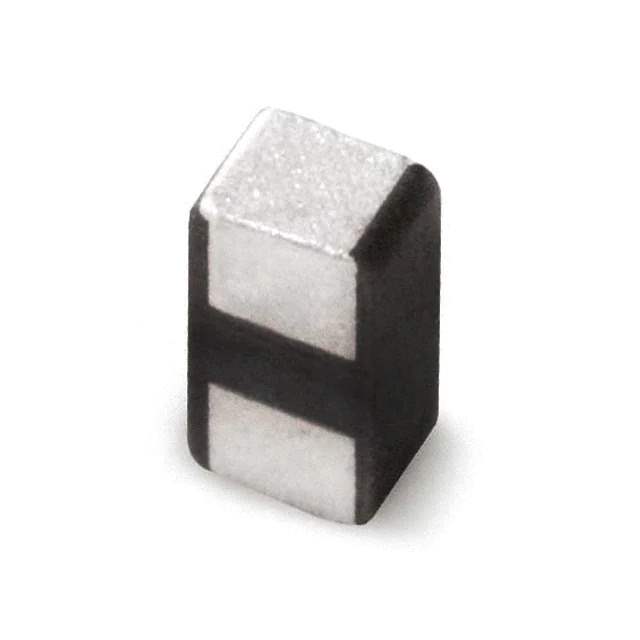

W3008 Real Image
Same model may have multiple batches, images only for reference.

W3008

Part No W3008
Manufacturer Pulse
Catalog RF Antennas
Description RF ANT 2.4GHZ CHIP SOLDER SMD / 2.4GHz Bluetooth Chip RF Antenna 2.4GHz ~ 2.483GHz 1.7dBi Solder Surface Mount
Datasheet
W3008 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Pulse
Package Tape & Reel
Product Status Active
RF Family/Standard Bluetooth
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.483GHz
Antenna Type Chip
Number of Bands 1
Return Loss -8dB
Gain 1.7dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.043" (1.10mm)
Applications BlueTooth
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Win Source Part Number 697414-W3008
Ultra Librarian 3D Model Ultra Librarian W3008 CAD Model

Description

The RF Antenna with Win Source Part Number 697414-W3008 is a high-quality component designed for RF and wireless applications.

  • Win Source Part Number: 697414-W3008
  • Application: RF and wireless
  • Suitable for: Bluetooth devices
  • Frequency Range: 2.4GHz to 2.483GHz
  • Antenna Type: Chip
  • Gain: 1.7dBi
  • Height: 0.043" (1.10mm)
  • Mounting: Surface
  • Termination: Solder
  • Package: Tape & Reel
  • Standard Package: 3,000 pcs
  • Frequency Group: UHF
  • RF Family/Standard: Bluetooth
  • Status: Active
  • Manufacturer: Pulse
