Same model may have multiple batches, images only for reference.

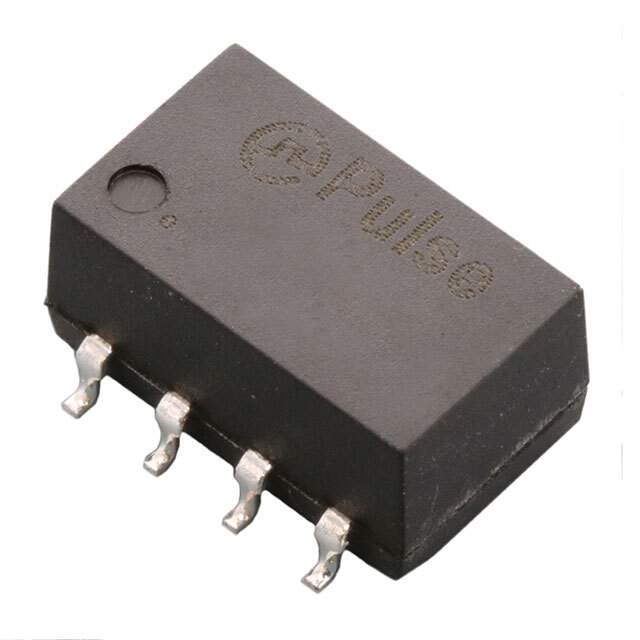

T8003NLT Real Image
Same model may have multiple batches, images only for reference.

T8003NLT

Part No T8003NLT
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 4LN SMD
Datasheet
T8003NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 4
DC Resistance (DCR) (Max) 200 mOhm
Mounting SMD (SMT)
Height (Max) 0.220" (5.59mm)
Dimension Vertical, 8 Gull Wing
Win Source Part Number 135022-T8003NLT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian T8003NLT CAD Model

Description

The Pulse Electronics Corporation T8003NLT is an active signal line filter with a vertical, 8 Gull Wing dimension.

  • Package: reel - TR
  • Voltage Rating-DC: no information provided
  • Current Rating (Max): no information provided
  • Filter Type: signal line
  • Height (Max): 0.220" (5.59mm)
  • Lines: 4
  • Impedance @ Frequency: no information provided
  • Inductance @ Frequency: no information provided
  • DC Resistance (DCR) (Max): 200 mOhm
  • Popularity: medium
  • Supply and Demand Status: limited
