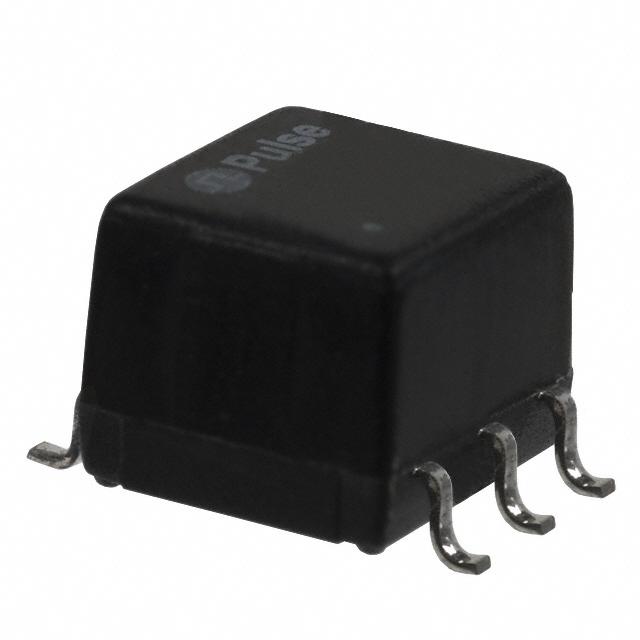

T3001NLT Pulse
Same model may have multiple batches, images only for reference.

T3001NLT

Part No T3001NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR T3/DS3/E3/STS-1 1:1 SMD / 100μH T3/E3 (Single) Pulse Transformer 1:1 Surface Mount
Datasheet
T3001NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Active
Transformer Type T3/E3 (Single)
Inductance 100µH
Mounting Type Surface Mount
Size / Dimension 0.300" L x 0.275" W (7.62mm x 7.00mm)
Height - Seated (Max) 0.250" (6.35mm)
Temperature Range - Operating -40°C ~ 85°C
Weight 0.02 oz (0.57 g)
Standard Package 500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 351316-T3001NLT
Ultra Librarian 3D Model Ultra Librarian T3001NLT CAD Model

Description

The 351316-T3001NLT is a pulse transformer designed for use in transformers for T3/E3 (Single) applications.

  • Product Name: 351316-T3001NLT
  • Type: Pulse transformer
  • Application: Transformers for T3/E3 (Single) applications
  • Size: 0.300" L x 0.275" W (7.62mm x 7.00mm)
  • Height: 0.250" (6.35mm)
  • Mounting: Surface mountable
  • Package: Tape & reel
  • Inductance: 100µH
  • Standard Package: 500 pcs
  • Status: Active
  • REACH: Unaffected
  • Manufacturer: Pulse
