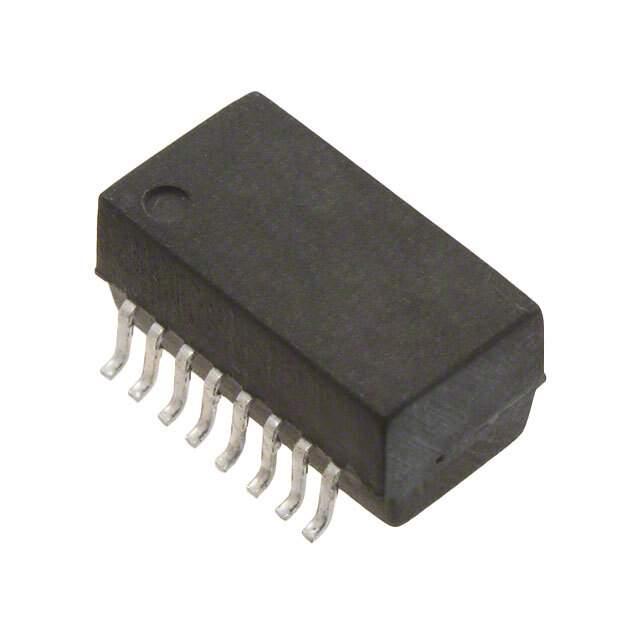

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Transformer Type T1/E1 (Dual)
Inductance 1.2mH, 1.2mH
Mounting SMD (SMT)
Height - Seated (Max) 0.245" (6.22mm)
Win Source Part Number 140836-T1094NL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name T1094
Introduction Date February 08, 1999
ECCN EAR99
Country of Origin China
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian T1094NL CAD Model

Description

The Pulse Electronics Corporation T1/E1 (Dual) Transformer is a high-quality transformer suitable for use in a wide range of electronic applications.

  • Inductance: 1.2mH
  • Height: 0.245" (6.22mm)
  • Mounting Technology: SMD (SMT)
  • Family Code: T1094
  • Manufacturer: Pulse Electronics Corporation
  • Product Status: Active
  • Popularity: High
  • Temperature Range: -55°C to 125°C
