Same model may have multiple batches, images only for reference.

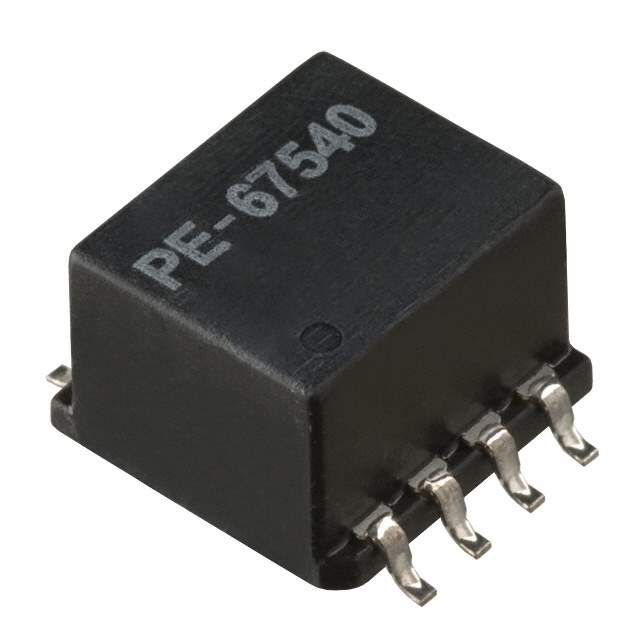

PE-67540NLT Real Image
Same model may have multiple batches, images only for reference.

PE-67540NLT

Part No PE-67540NLT
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 4LN SMD
Datasheet
PE-67540NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 4
DC Resistance (DCR) (Max) 600 mOhm
Mounting SMD (SMT)
Height (Max) 0.350" (8.89mm)
Dimension Vertical, 8 Gull Wing
Win Source Part Number 026660-PE-67540NLT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PE-67540NLT CAD Model

Description

The 026660-PE-67540NLT is a signal line filter manufactured by Pulse Electronics Corporation.

  • Mounting Type: Surface-Mount Device (SMD)
  • Height: 0.350 inches (8.89mm)
  • Lines: Four
  • Function: Reduce Electromagnetic Interference (EMI)
  • DC Resistance (Max): 600 mOhm
  • Supply and Demand Status: Balanced
  • Packaging: Reel-TR
