Same model may have multiple batches, images only for reference.

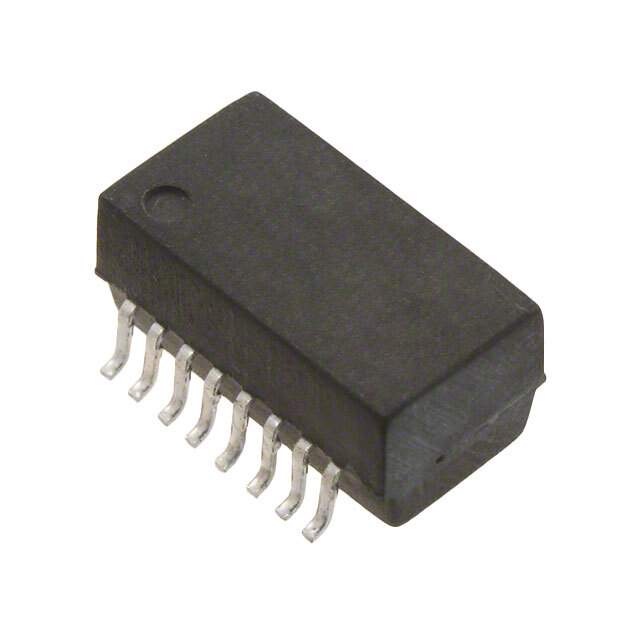

PE-65861NL Real Image
Same model may have multiple batches, images only for reference.

PE-65861NL

Part No PE-65861NL
Manufacturer Pulse
Catalog Pulse Transformers
Description TRANSFORMER TELECOM DUAL T1/E2
Datasheet
PE-65861NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Transformer Type T1/E1 (Dual)
Inductance 1.2mH, 1.2mH
Mounting SMD (SMT)
Height - Seated (Max) 0.245" (6.22mm)
Weight 0.14 oz (3.99g)
Win Source Part Number 026657-PE-65861NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-65861NL CAD Model

Description

The Pulse Electronics Corporation 026657-PE-65861NL is a transformer component with a T1/E1 (Dual) transformer type.

  • Inductance: 1.2mH, 1.2mH
  • Seated Height: 0.245" (6.22mm)
  • Mounting: SMD (SMT)
  • Package: Tube/rail
  • Supply and Demand: Limited
