Same model may have multiple batches, images only for reference.

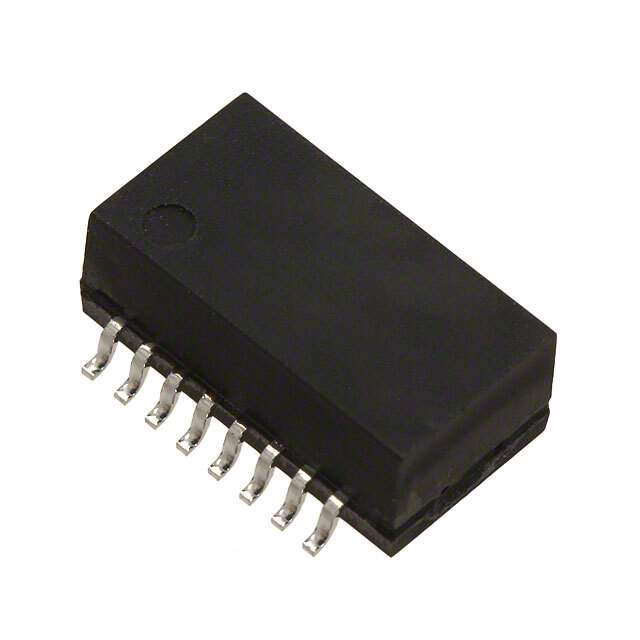

PE-65723NLT Real Image
Same model may have multiple batches, images only for reference.

PE-65723NLT

Part No PE-65723NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description TRANSFORMER 2000VRMS 75UH SMD / Telecom Transformer 1:1 0.3Ohm Prim. DCR 16 Terminal Gull Wing SMD
Datasheet
PE-65723NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel package
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 75μH
E.T. 1.8V μS
Mounting SMD
Dimension 0.500" L x 0.285" W (12.70mm x 7.24mm)
Height - Seated (Maximum) 0.210" (5.33mm)
Weight 0.03 oz (0.85g)
Win Source Part Number 791651-PE-65723NLT
Popularity Medium
Supply and Demand Status Balance
Family Name PE-65723
ECCN EAR99
Country of Origin China
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian PE-65723NLT CAD Model

Description

The Pulse Electronics Corporation PE-65723 transformer is an isolation and data interface (encapsulated) transformer that comes in a reel package.

  • Inductance: 75μH
  • E.T.: 1.8V μS
  • Mounting: SMD
  • Weight: 0.03 oz (0.85g)
  • Dimension: 0.500" L x 0.285" W (12.70mm x 7.24mm)
  • Maximum Seated Height: 0.210" (5.33mm)
  • Family: Transformer
  • Manufactured In: China
  • Estimated EOL Date: 2030
  • Popularity: Medium
  • Supply and Demand Status: Balanced
