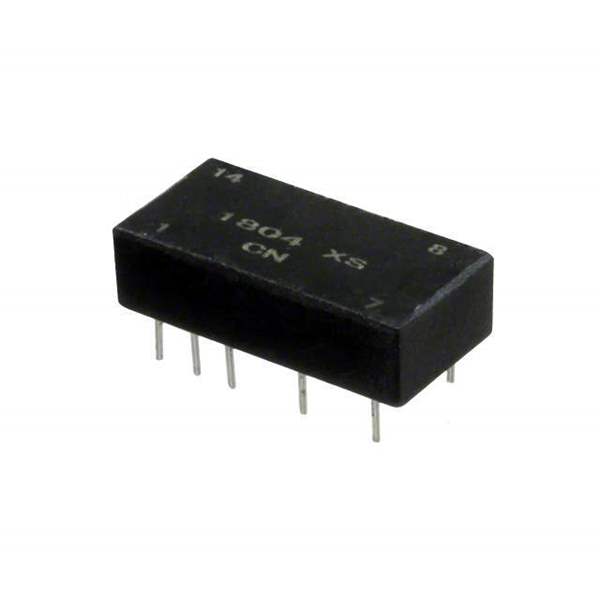

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Tube
Product Status Active
Transformer Type T1/E1 (Dual)
Inductance 1.2mH, 1.5mH
Mounting Type Through Hole
Size / Dimension 0.800" L x 0.386" W (20.32mm x 9.80mm)
Height - Seated (Max) 0.290" (7.37mm)
Operating Temperature 0°C ~ 70°C
Ultra Librarian 3D Model Ultra Librarian PE-65565NL CAD Model

Description

NULL
