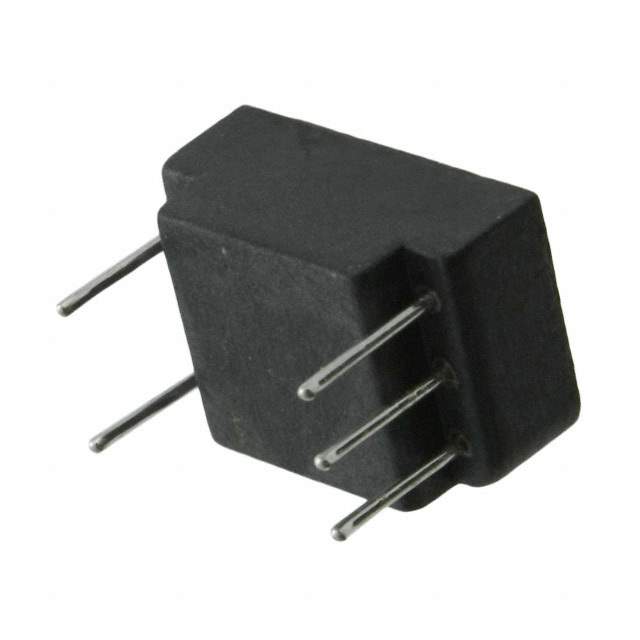

PE-65389NL Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Transformer Type T1/E1 (Single)
Inductance 1.5mH
Mounting Through Hole
Height - Seated (Max) 0.250" (6.35mm)
Weight 0.14 oz (3.99g)
Win Source Part Number 209773-PE-65389NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-65389NL CAD Model

Description

The Pulse Electronics Corporation PE-65389NL is a T1/E1 (Single) transformer that is designed for use in a variety of applications, including telecommunications and networking.

  • Inductance: 1.5mH
  • Height Seated (Max): 0.250" (6.35mm)
  • Mounting Type: Through Hole
  • Packaging: Tube/Rail
  • Weight: 0.14 oz (3.99g)
  • Product Status: Active
  • Manufacturer: Pulse Electronics Corporation
  • Popularity: Medium
  • Supply and Demand Status: Limited
