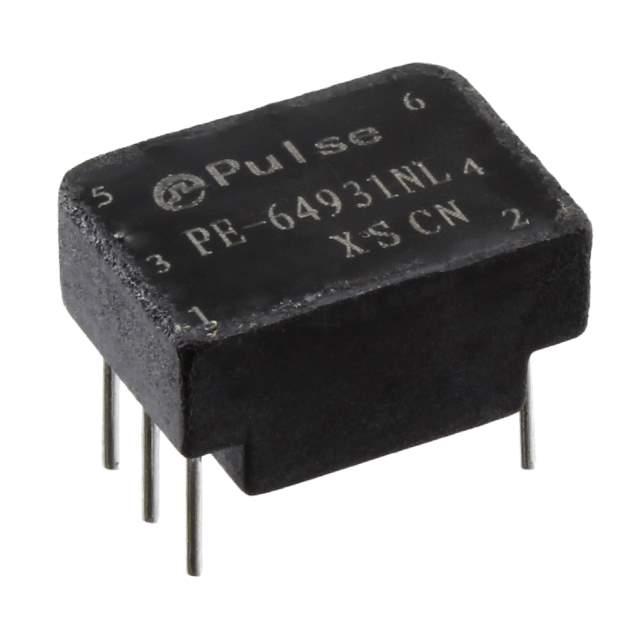

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Pulse Electronics Network
Packaging Tube
Transformer Type T1/E1 (Single)
Inductance 1.2mH
Mounting Style Through Hole
Dimension 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Maximum) 0.250" (6.35mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.07 oz (1.99 g)
Manufacturer Pack Quantity 60
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811126-PE-64931NL
Ultra Librarian 3D Model Ultra Librarian PE-64931NL CAD Model

Description

The Pulse Electronics Network 811126-PE-64931NL is a through-hole mounting style transformer that is designed to meet the requirements of T1/E1 (Single) transformer type.

  • Dimensions: 0.500" L x 0.350" W (12.70mm x 8.89mm)
  • Height: 0.250" (6.35mm)
  • Inductance: 1.2mH
  • Temperature Range: 0°C to 70°C
