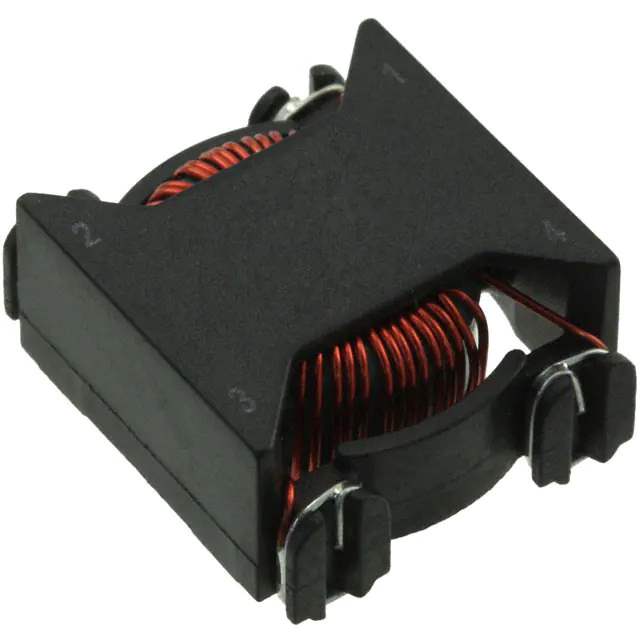

PE-53913NL Real Image
Same model may have multiple batches, images only for reference.

PE-53913NL

Part No PE-53913NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 1A 2LN SMD
Datasheet
PE-53913NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Pulse
Package Tube
Product Status Active
Number of Lines 2
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 450mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Size / Dimension 0.645" L x 0.560" W (16.38mm x 14.22mm)
Height (Max) 0.350" (8.89mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 848253-PE-53913NL
Ultra Librarian 3D Model Ultra Librarian PE-53913NL CAD Model

Description

The 848253-PE-53913NL is a common mode choke filter designed for electronic components by Pulse.

  • Voltage Rating: 250V AC
  • Current Rating: 1A
  • Size: 0.645" L x 0.560" W (16.38mm x 14.22mm)
  • Mounting Type: Surface Mount
  • Max DC Resistance (DCR): 450mOhm
  • Number of Lines: 2
  • Operating Temperature: -40°C to 130°C
  • Standard Package: 30 Pieces
  • Product Status: Active
  • REACH: Not Affected
