Same model may have multiple batches, images only for reference.

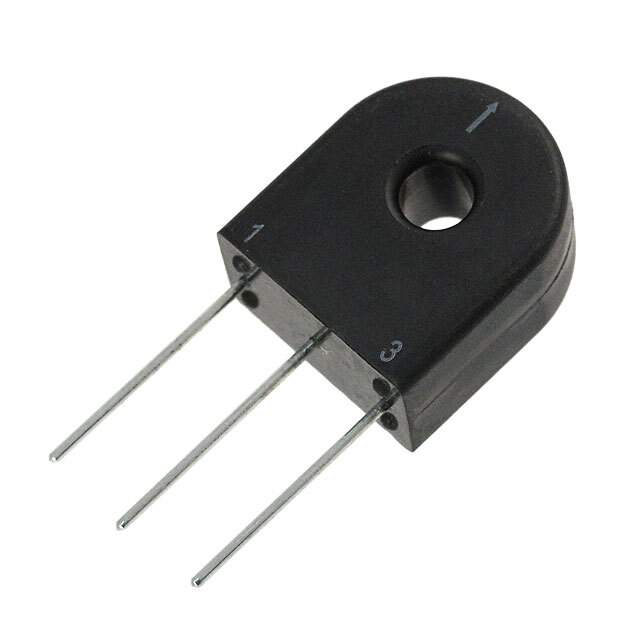

PE-51718NL Real Image
Same model may have multiple batches, images only for reference.

PE-51718NL

Part No PE-51718NL
Manufacturer Pulse
Catalog Current Sense Transformers
Description INDUCTOR CURR SENSE 20.0 MH T/H
Datasheet
PE-51718NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tray
Status Active
Frequency Range 20kHz to 200kHz
Type Invasive
Current Rating 20A
Inductance 20mH
DC Resistance (DCR) 100 Ohm Primary, 1.4 Ohm Secondary
Mounting Through Hole
Height - Seated (Max) 0.800" (20.32mm)
Termination Style PC Pin
Win Source Part Number 106921-PE-51718NL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PE-51718NL CAD Model

Description

The Pulse Electronics Corporation 106921-PE-51718NL is an invasive transformer with a current rating of 20A and an inductance of 20mH.

  • Current Rating: 20A
  • Inductance: 20mH
  • Height: 0.800" (20.32mm)
  • Mounting Technology: Through-hole
  • Frequency Range: 20kHz to 200kHz
  • Category: Transformers
  • DC Resistance (DCR) Primary: 100 Ohm
  • DC Resistance (DCR) Secondary: 1.4 Ohm
  • Packaging: Tray
  • Popularity: Medium
  • Supply and Demand Status: Balanced
